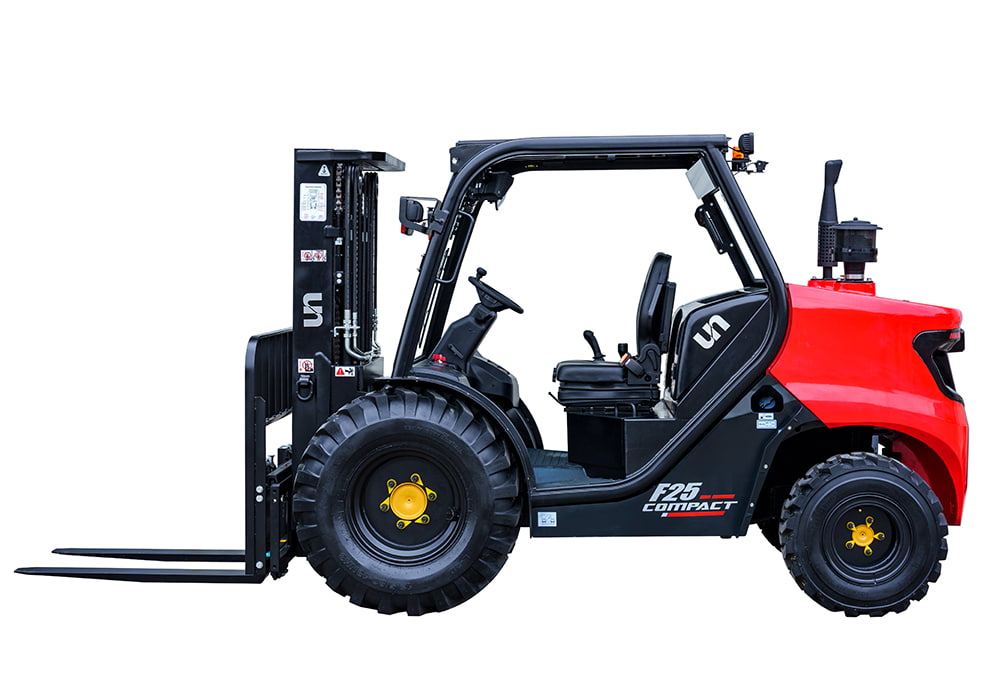

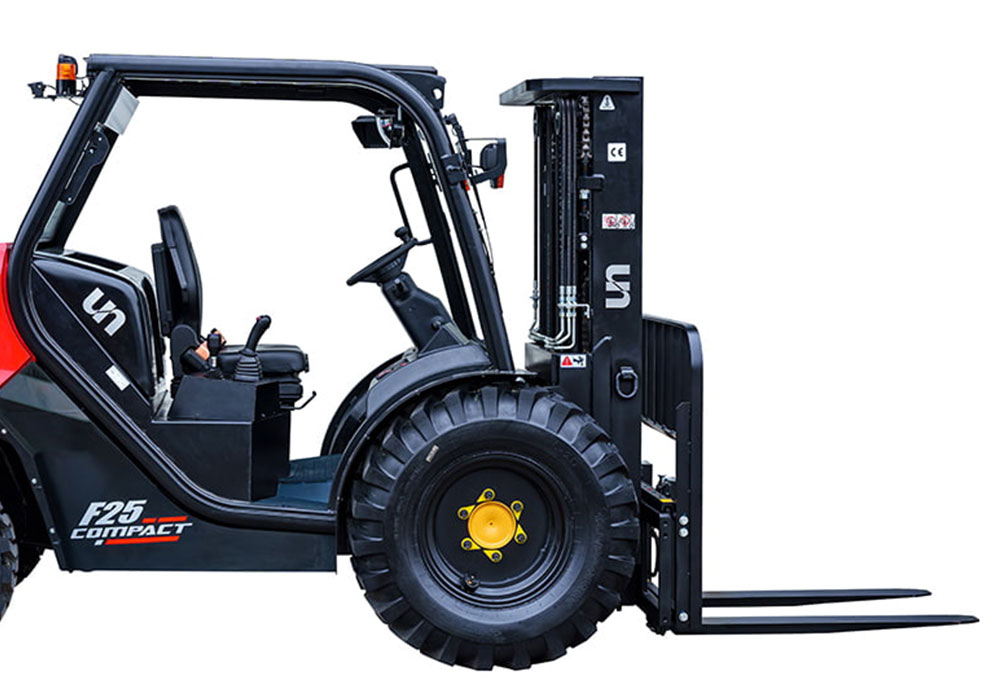

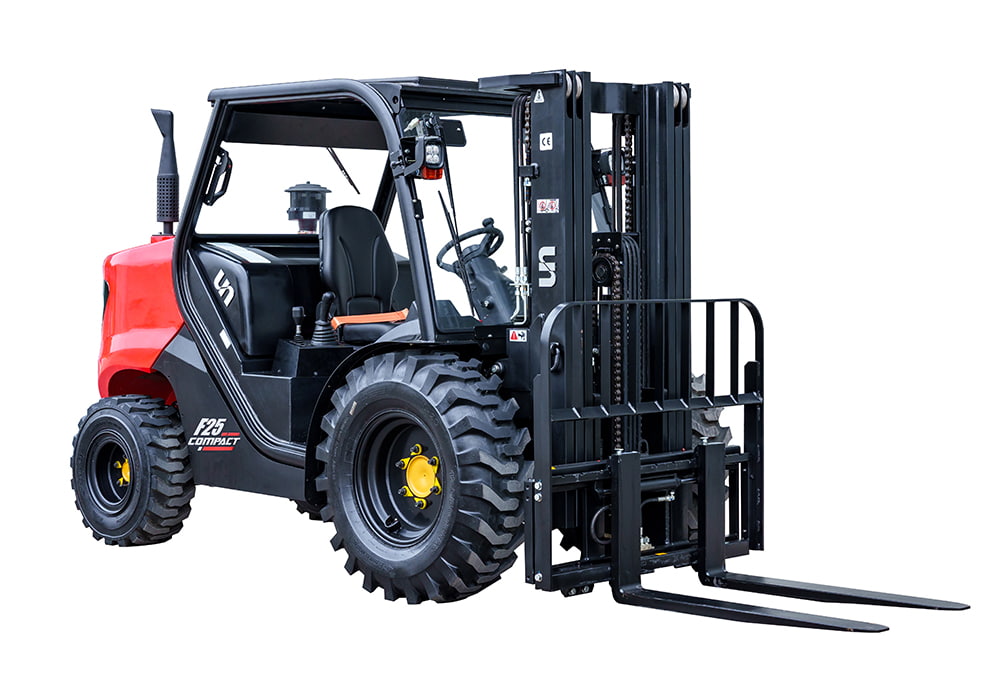

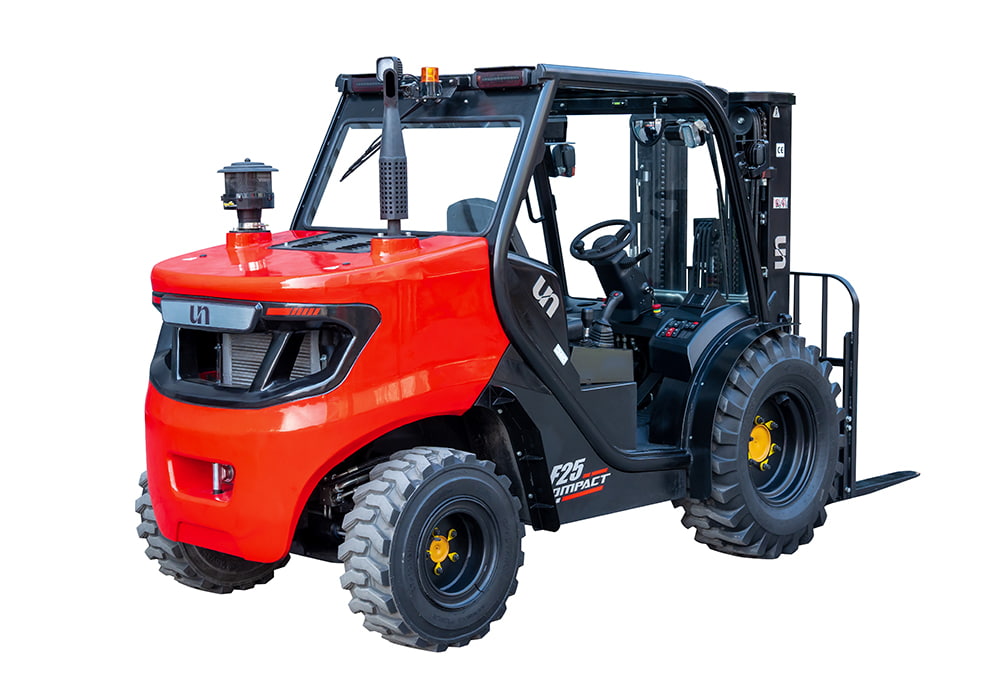

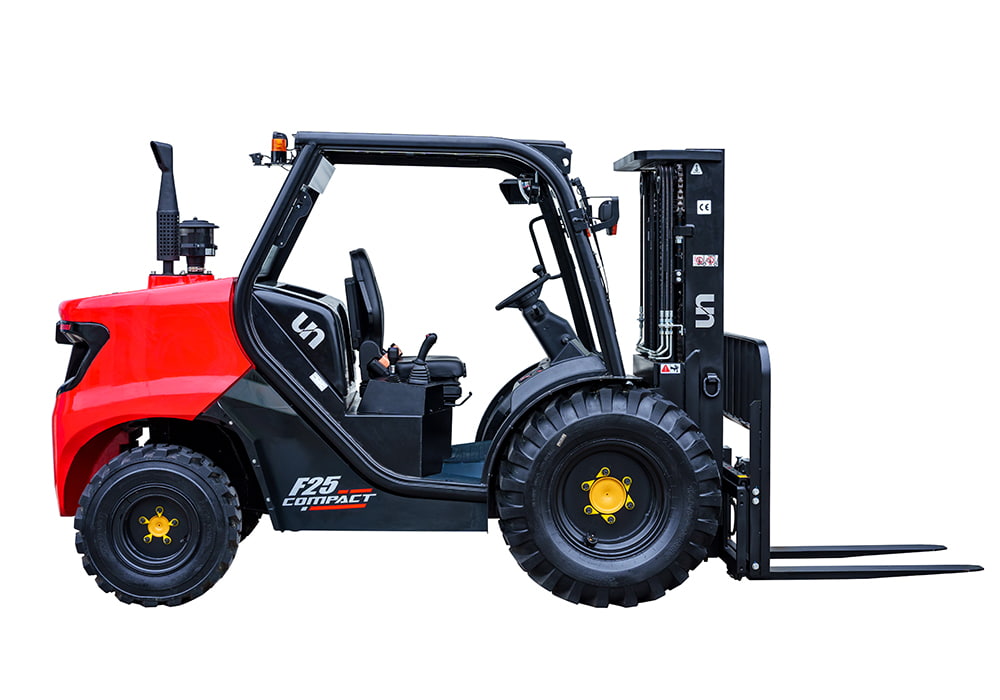

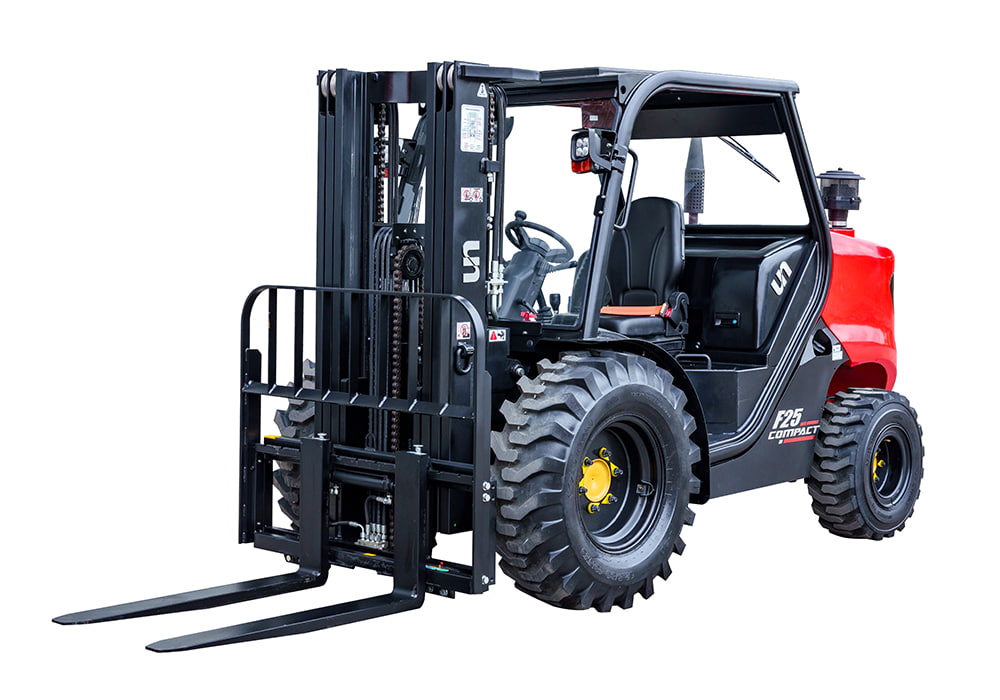

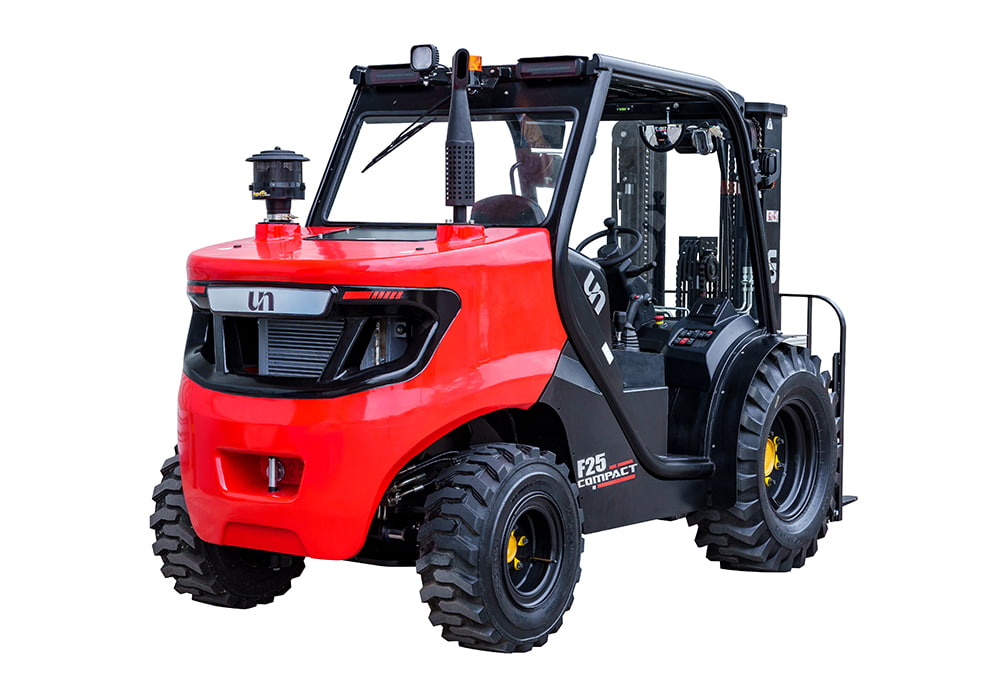

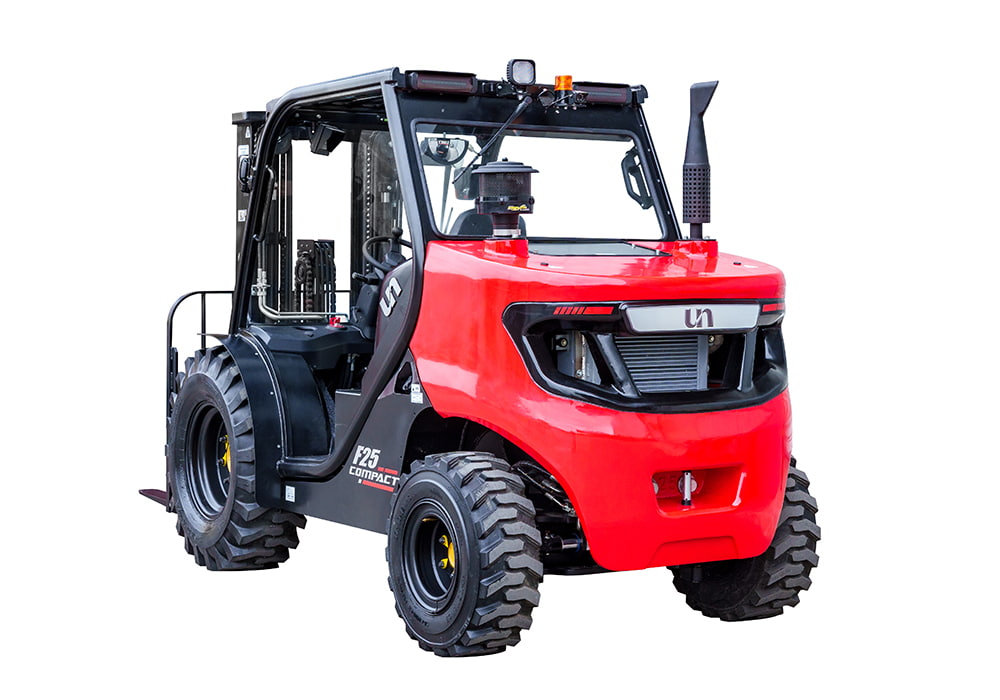

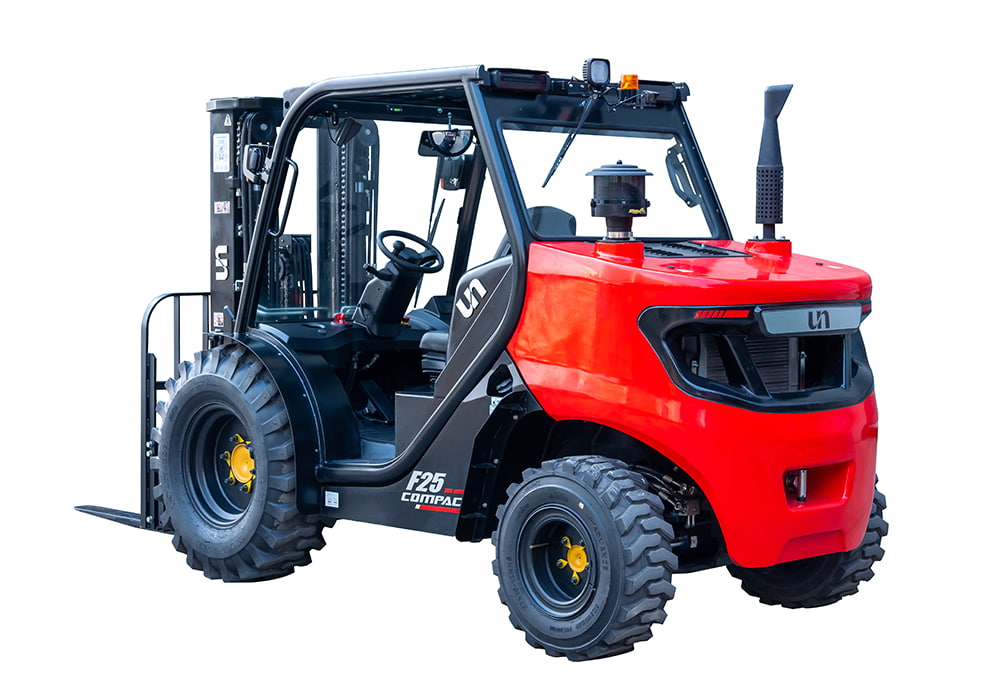

UN Forklift's all-new F-Series 2WD & 4WD hydrostatic off-road forklifts represent a breakthrough in design and performance. Built for toughness and compactness, the F-Series delivers exceptional capability and efficiency, making it ideal for the most challenging terrains with ease, especially for height and space limited areas.
 |
High Performance ● Strong power: Equipped with Yanmar Stage III and Hyundai Stage V engines. ● Adopts hydrostatic transmission with stepless speed regulation. ● Load sensing steering system. ● 2WD and 4WD modes, with one-button seamless switching. |
| Safety & Reliability ● Semi closed cabin. ● Suspension seat with OPS (option). ● Emergency disconnect switch . ● Lockable disconnect switch can completely shut off the power. ● Electronic parking brake, with one-button precise control. ● LED Front & Tail working lights . ● Rear camera display. |
 |
 |

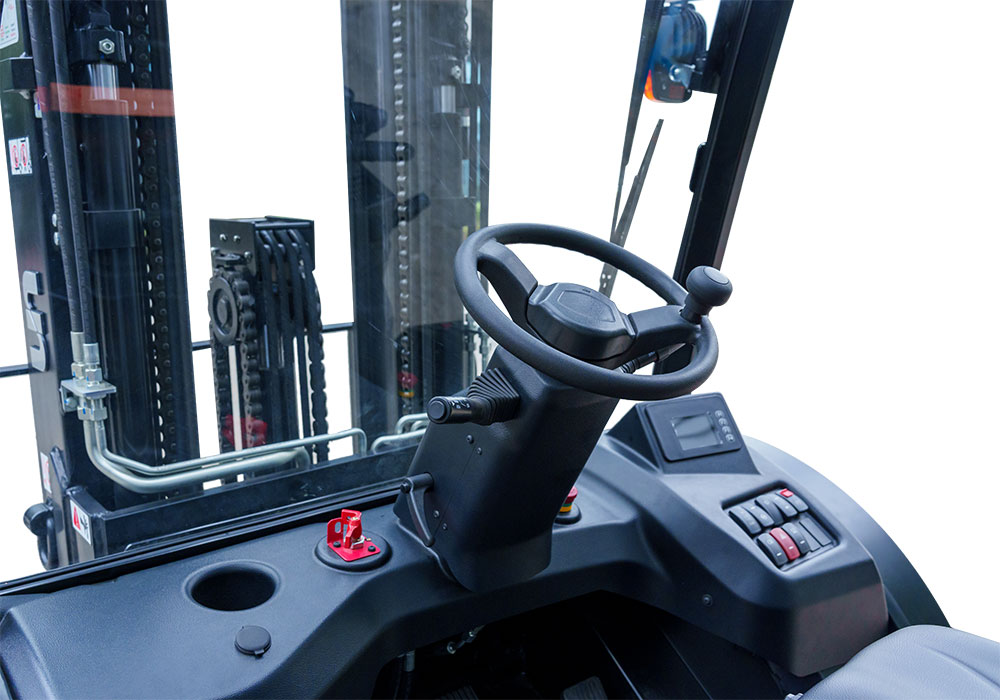

Superior Ergonomics ● Wide-view mast & Wide-angle rearview mirror . ● Fully suspended cabin reduces vibrations and shocks. ● Suspended seat reduces vibration, alleviates fatigue. ● Spacious legroom enhances operational comfort. |
|

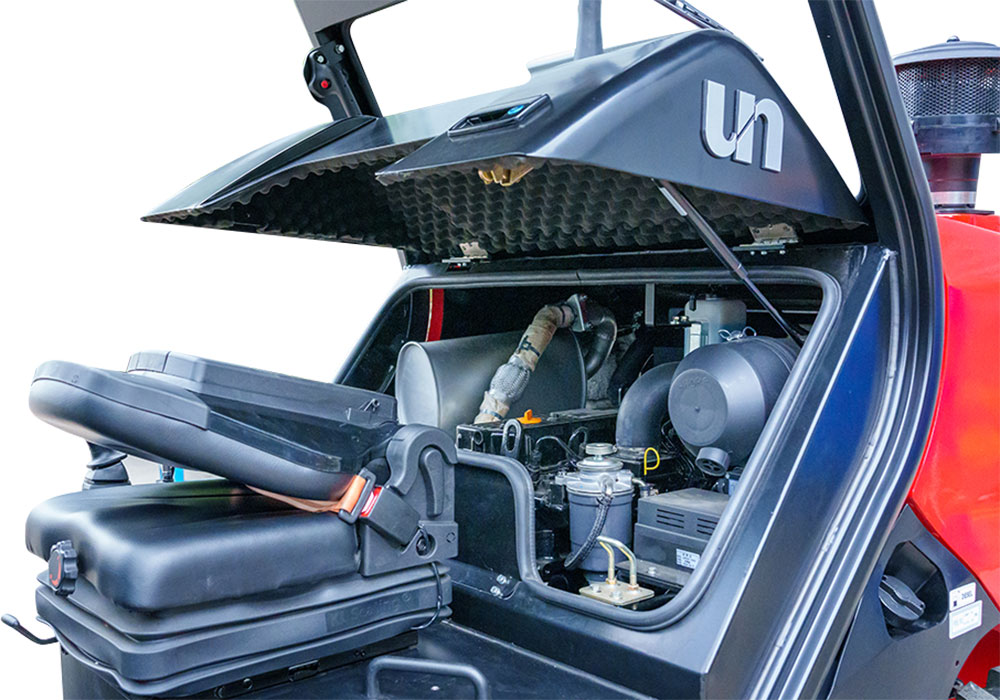

Easy Maintenance ● 90-degree seat folding backrest. ● Forward-tilting overhead guard (Option). |
|
 |

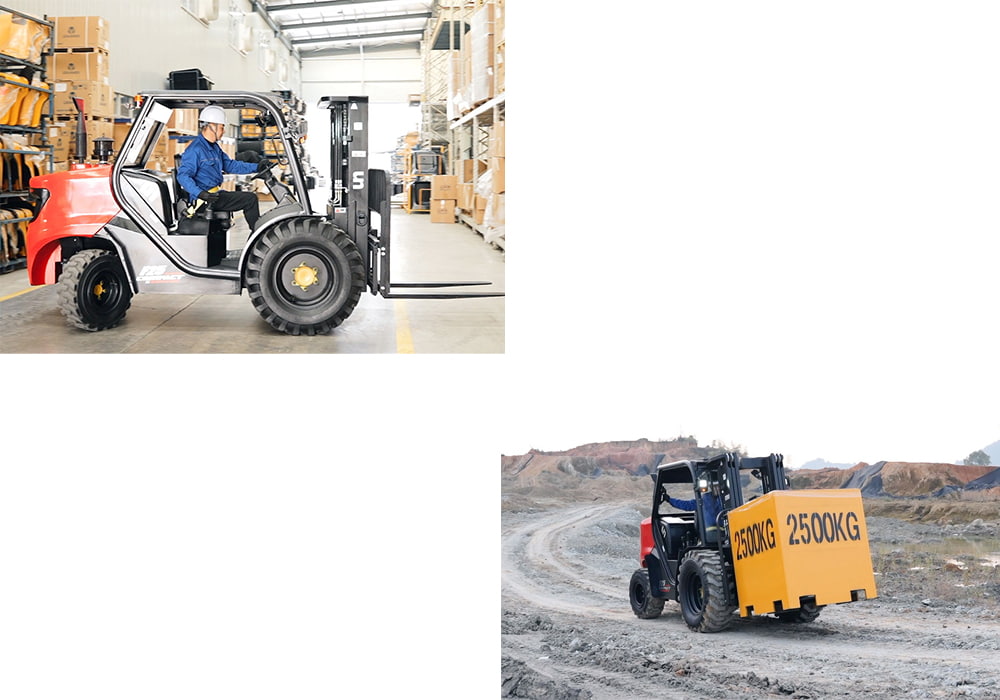

Multiple-site Application ● Powerful off-road performance, can be widely used in construction, agriculture, rescue and other outdoor operations. |
|
Multiple-site Application ● Compact and flexible mechanism, perfectly capable of working in factories, warehouses, basements, stations, wharves, harbors and other complex working conditions. |
|
MAIN SPECIFICATIONS
|
General |
1 |
Manufacturer |
|
UN |
|
|
2 |
Model |
|
FD25J-DFJE1 |
FD25J-DFJS1 |
|
|
3 |
Power Type |
|
Diesel |
||
|
4 |
Rated Load Capacity |
Q(kg) |
2500 |
||
|
5 |
Load Centre |
C(mm) |
500 |
||
|
Characteristic &Dimensions |
6 |
Free Lift Height |
h2(mm) |
112 |
|
|
7 |
Rated Lift Height |
h3(mm) |
3300 |
||
|
8 |
Mast lowered Height |
h1(mm) |
2360 |
||
|
9 |
Mast Extended Height (With Backrest) |
h4(mm) |
4364 |
||
|
10 |
Mast Tilt Angle (F/R, α/β) |
(deg) |
10°/12° |
||
|
11 |
Overhead Guard Height |
h6(mm) |
1990 |
||
|
12 |
Overall Length |
l1(mm) |
4135 |
||
|
13 |
Length to Face of Forks (Without Fork) |
l2(mm) |
3065 |
||
|
14 |
Overall Width |
b1(mm) |
1450 |
||
|
15 |
Forks Size (L*W*T) |
s/e/l(mm) |
1070x122x40 |
||
|
16 |
Fork Overhang (Wheel Center to Fork Face) |
X(mm) |
613 |
||
|
17 |
Fork Carriage Width |
b3 |
1200 |
||
|
18 |
Ground Clearance Below Mast |
m1 |
300 |
||
|
19 |
Ground Clearance at Centre of Wheelbase |
m2 |
310 |
||
|
20 |
Turning Radius |
Wa |
3380 |
||
|
Performances |
21 |
Travel Speed (Full Load) 2WD/4WD |
km/h |
19/10 |
|
|
22 |
Travel Speed (No Load) 2WD/4WD |
km/h |
21/12 |
||
|
23 |
Lifting Speed (Full Load / No Load） |
m/s |
0.4/0.5 |
||
|
24 |
Lowering Speed (Full Load / No Load） |
m/s |
No Load≥0.3 Full Load≤0.6 |
||
|
25 |
Max.Drawbar Pull (Full Load / No Load） |
KN |
38/30 |
||
|
26 |
Max.Gradeability (Full Load / No Load） |
% |
50 |
||
|
27 |
Tyre (Front×2) |
|
12.5/80-18NHS 14PR |
||
|
28 |
Tyre (Rear×2) |
|
27×10-12NHS |
||
|
29 |
Front Tread |
b10(mm) |
1160 |
||
|
30 |
Rear Tread |
b11(mm) |
1175 |
||
|
31 |
Wheelbase |
Y(mm) |
1900 mm |
||
|
Weight |
32 |
Total Weight |
|
4230 |
|
|
33 |
Front Axle Weight Distribution (Full Load) |
kg |
5660/1070 |
||
|
34 |
Front Axle Weight Distribution (No Load) |
kg |
1690/2540 |
||
|
Power & Transmission |
35 |
Engine Model |
|
Yanmar/4TNE98/Euro 3 |
Doosan/D24/Euro 5 |
|
36 |
Engine Power |
Kw |
43.7 |
48.2 |
|
|
37 |
Rated Speed |
tr/min |
2300 |
2600 |
|
|
38 |
Rated Torque /Speed |
N·m/tr/min |
177.6-196.3/1700 |
214/1600 |
|
|
39 |
Bore x Stroke |
mm |
98×110 |
90×94 |
|
|
40 |
Displacement |
cc |
3318 |
2392 |
|
|
41 |
Transmission Type |
|
Hydrostatic transmission |
||
|
42 |
Operating Pressure |
Mpa |
18.5 |
||
|
43 |
Fuel Tank Capacity |
L |
50 |
||
|
44 |
Transmission Stage (FWD / RVS) |
|
1/1 |
||
Specifications and characteristics are subject to change without notice.
Please contact us for detailed information.
