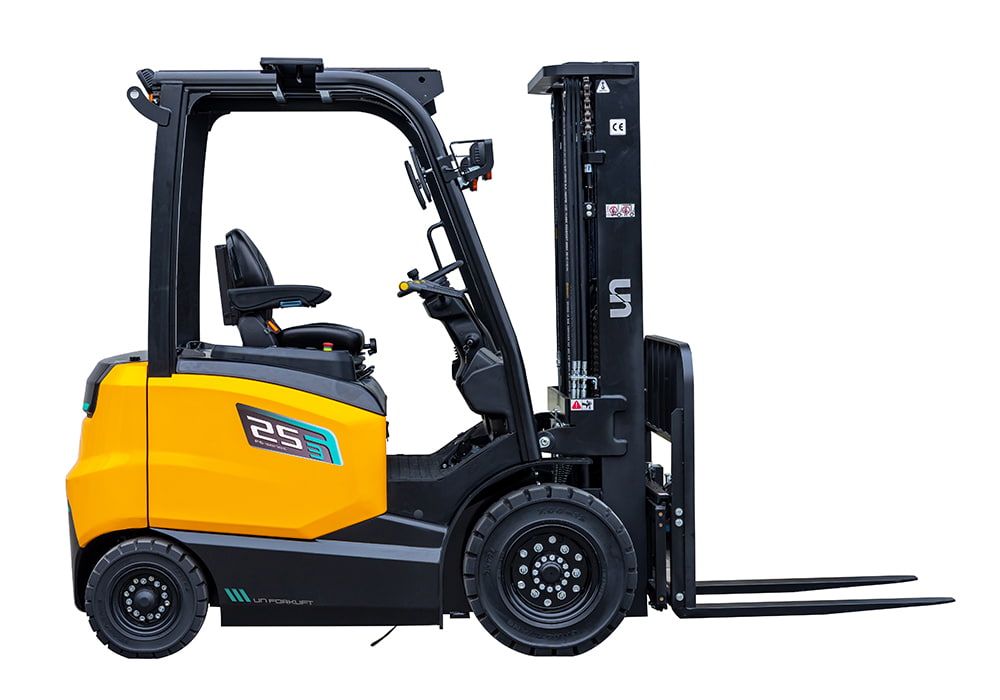

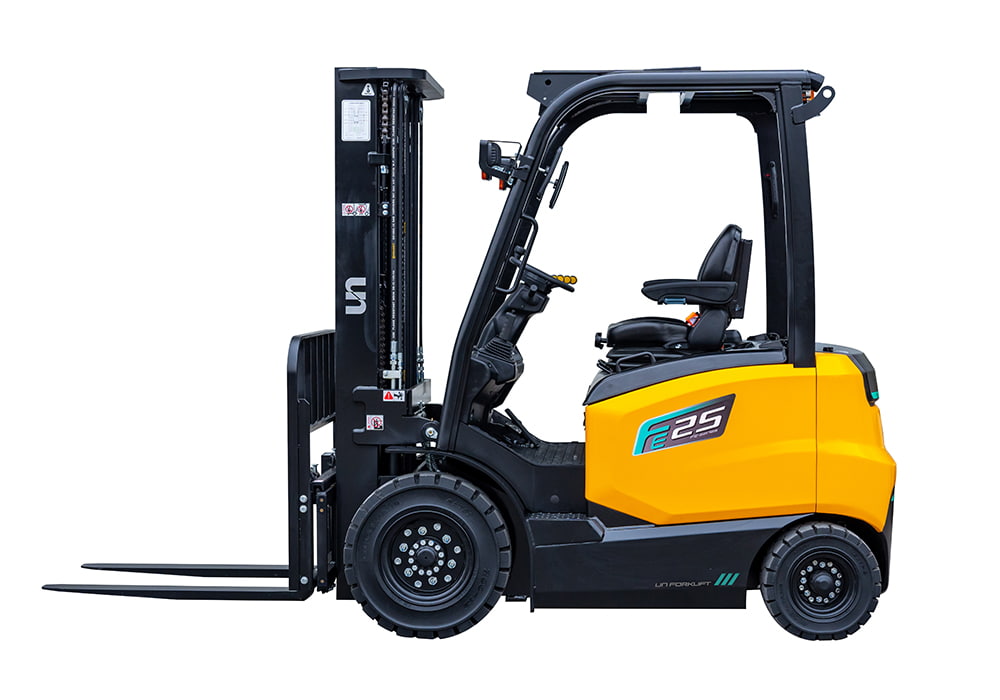

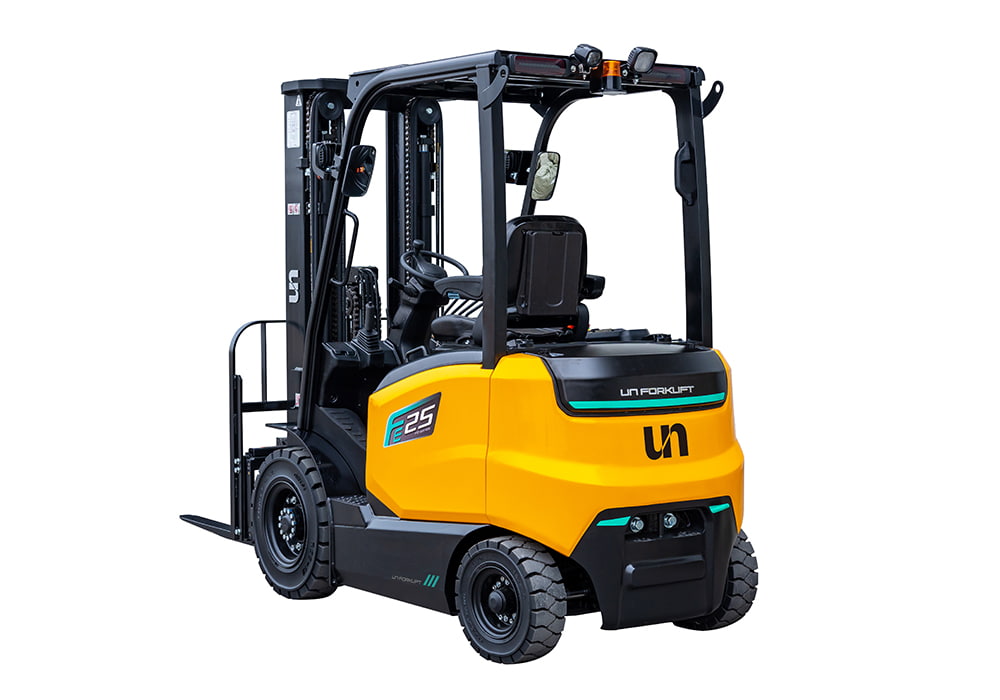

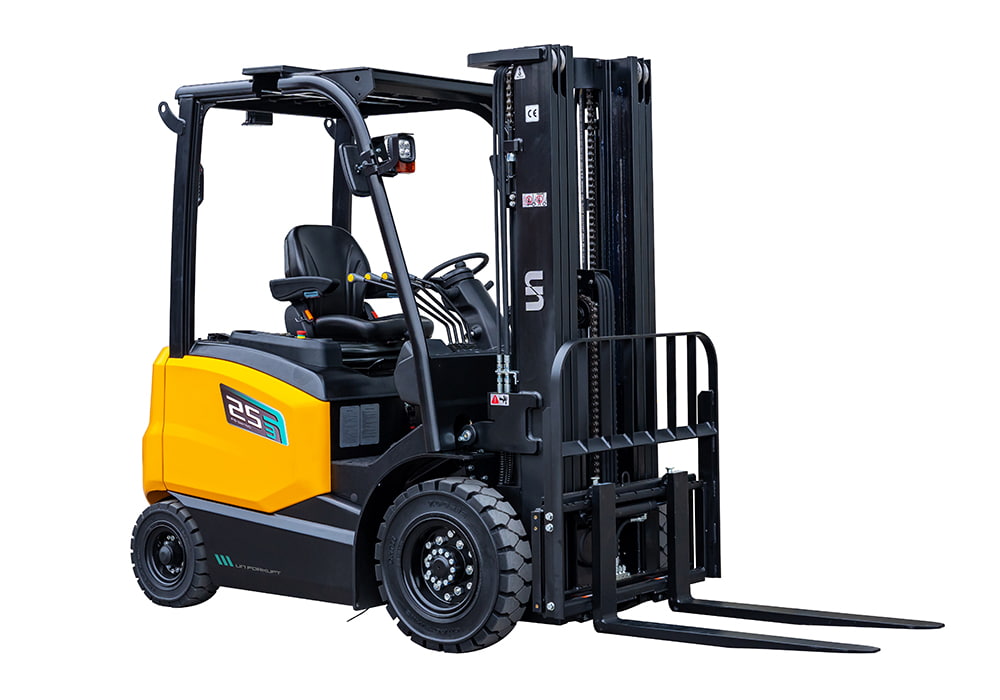

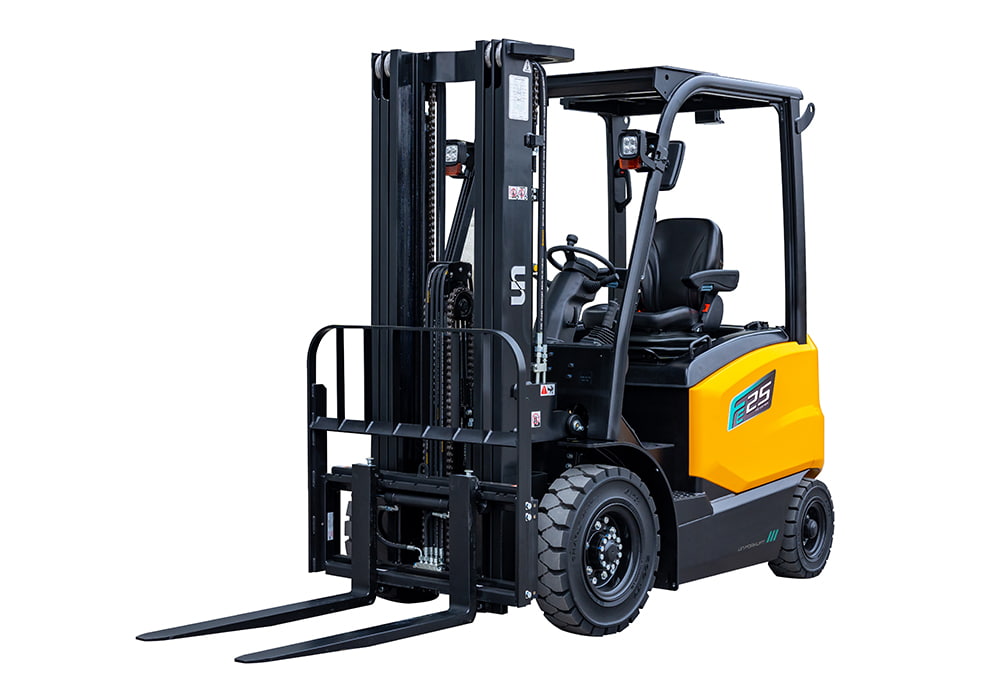

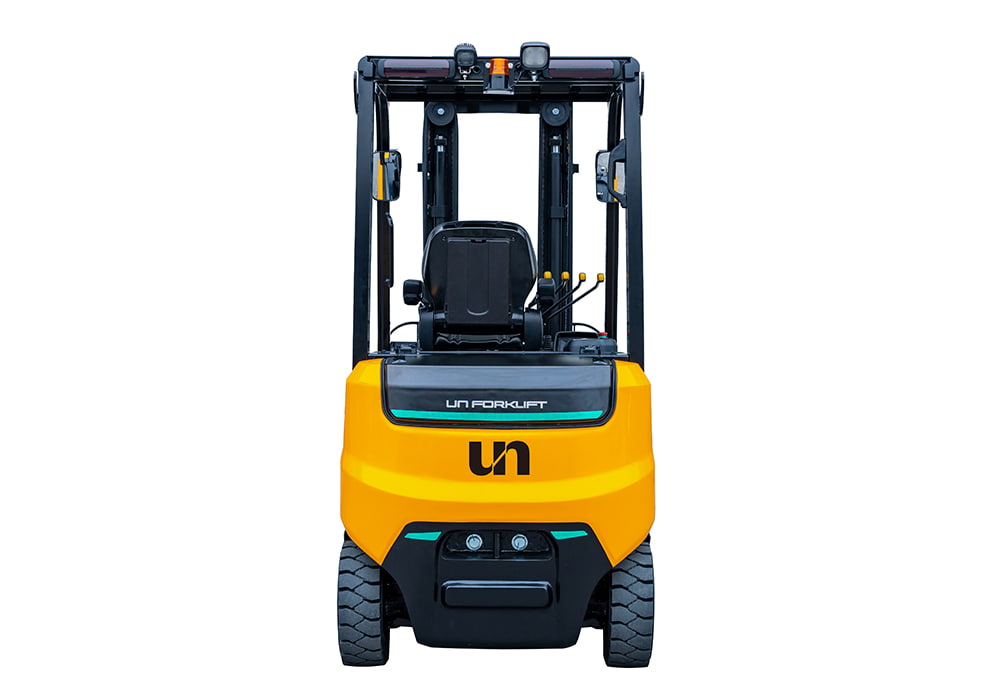

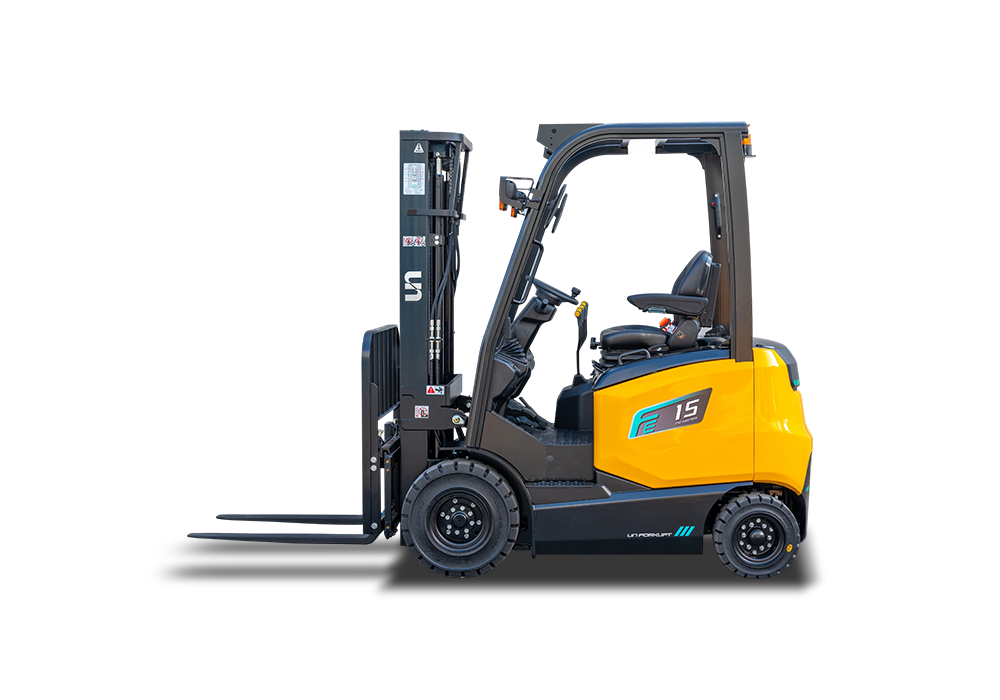

The FE Series 4-wheel electric forklift (Capacity:1.5-3.5T) is a fully upgraded model developed on the basis of the original V Series. This series has undergone comprehensive enhancements in appearance , comfort, safety, and maintainability, etc.
 |

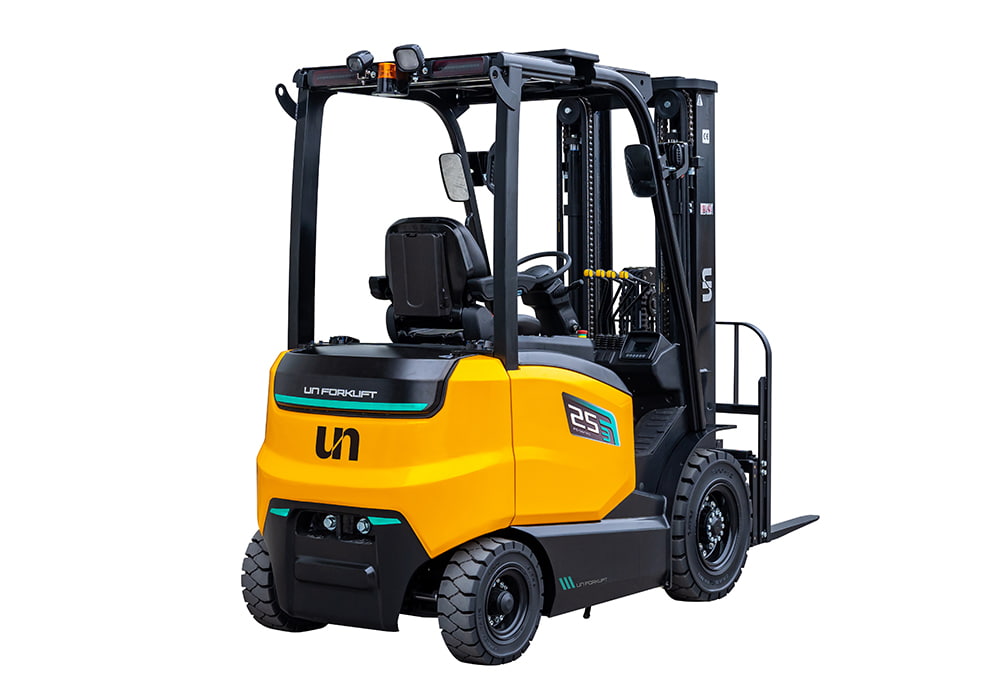

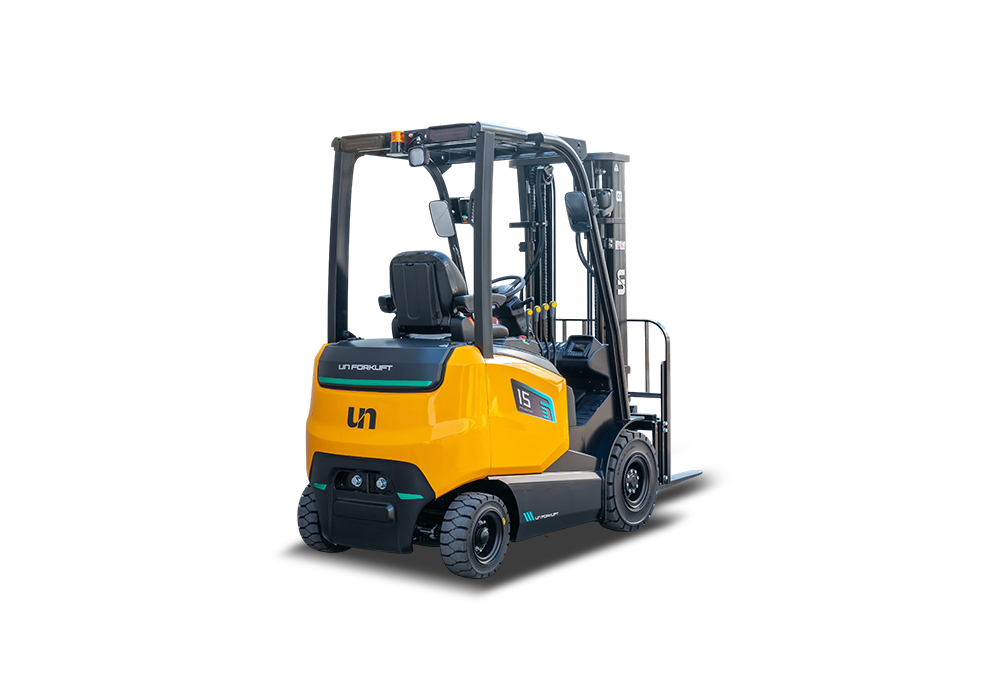

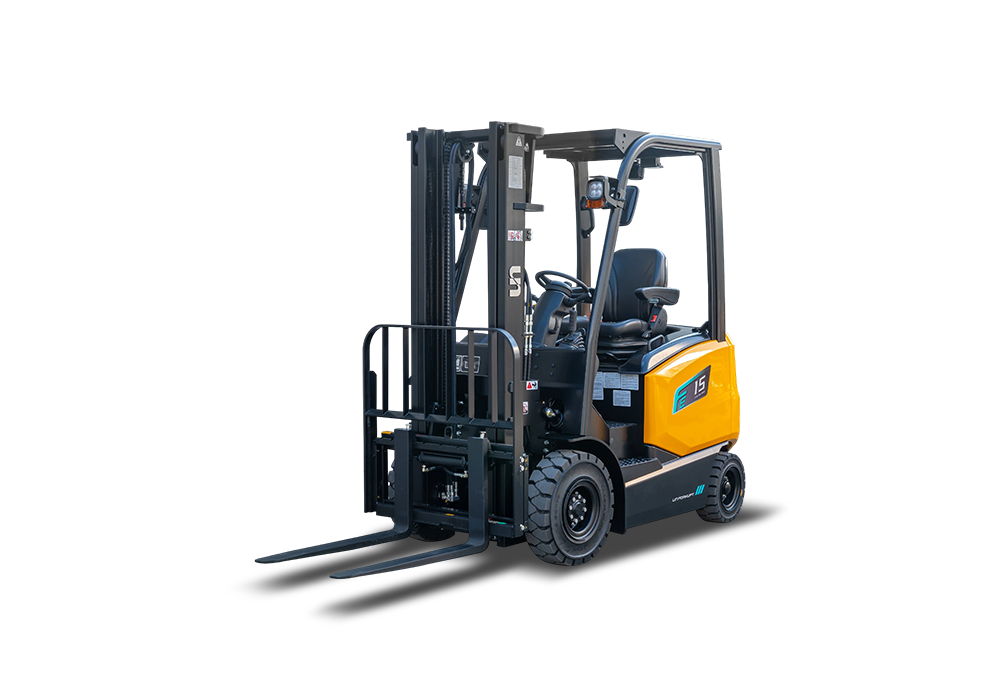

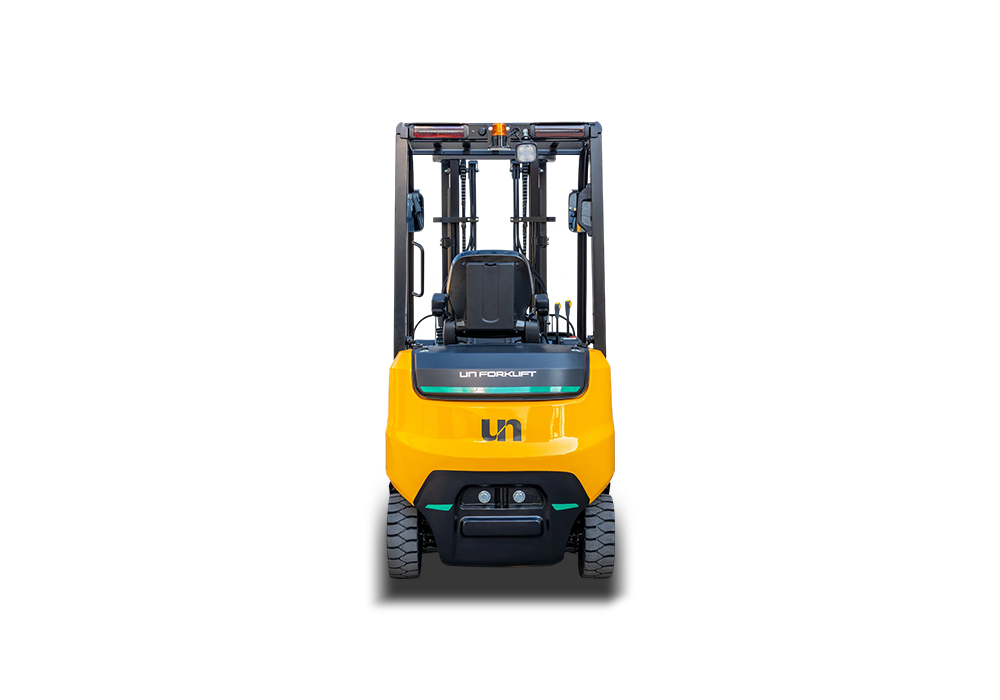

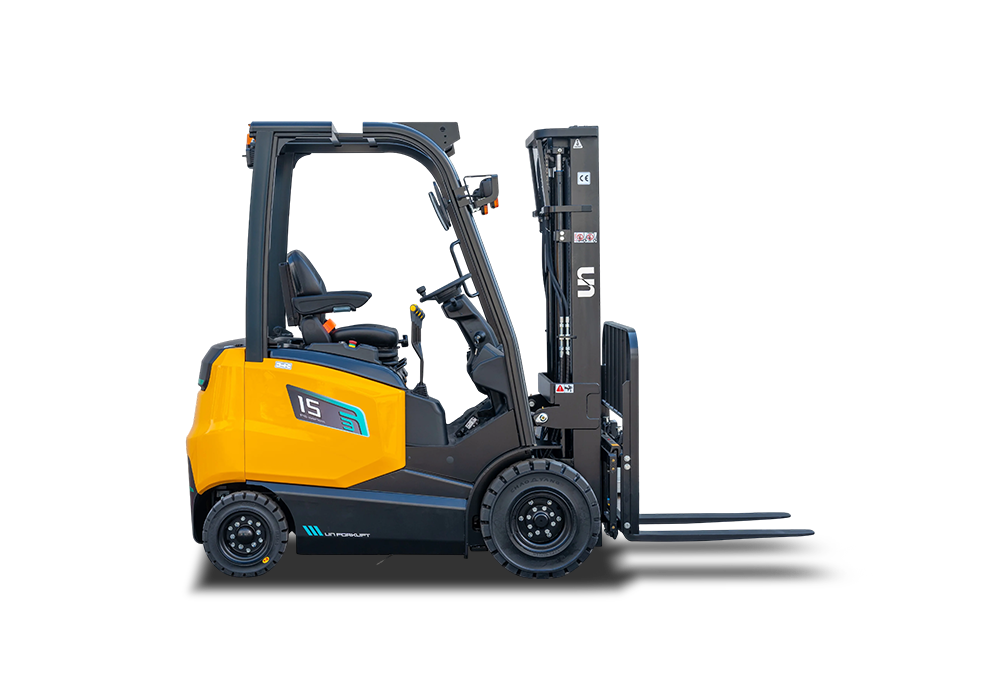

Appearance ● With a brand-new design, the forklift features a compact structure,smooth lines, and vibrant colors create a striking and modern look. |
|
High Performance ● Drive motor adopts an H-type parallel arrangement, ensuring excellent stability. ● Steering Axle: - Cast axle body with a 30% increase in strength. - Equipped with tapered roller bearings to enhance load capacity and durability. - High-mounted design with flexible connections for improved performance and stability. ● Outstanding tight-turn performance. ● Featuring a load-sensing steering gear. ● Multiple speed modes. ● Equipped with a high-power hydraulic pump motor & a low-noise, high-displacement pump. ● High-capacity battery. |
 |
 |

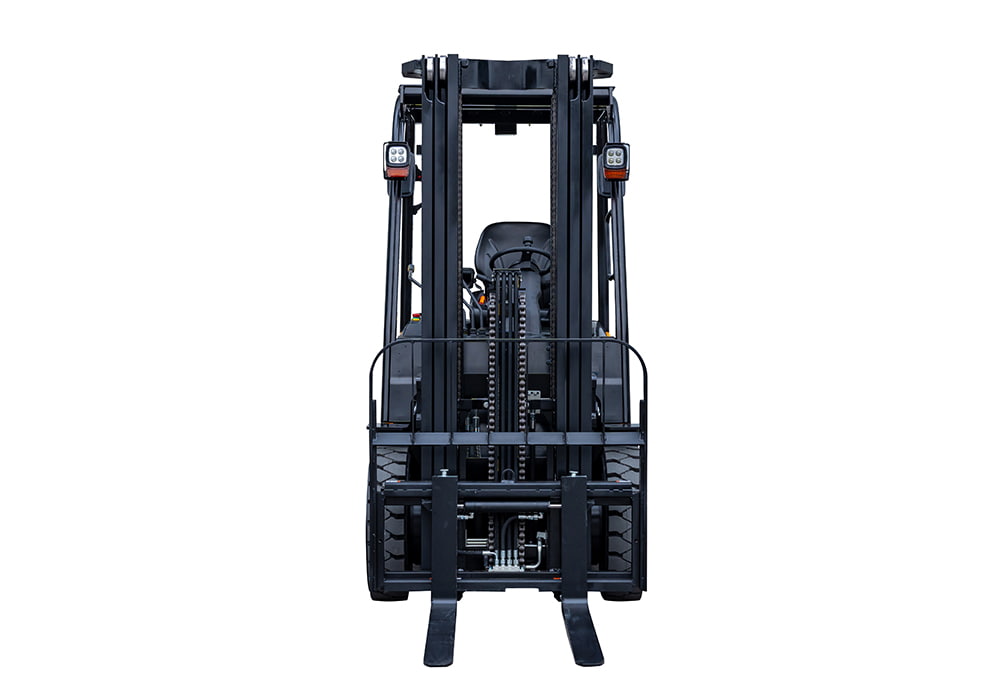

Safety & Reliability ● Robust stamped OHG. ● Wide view mast. ● LED lights. ● Standard equipped with proportional lifting function ● Standard turning speed deceleration function . ● standard charging heating function, can be charged at -20°C.(LI-ION Battery) |
|

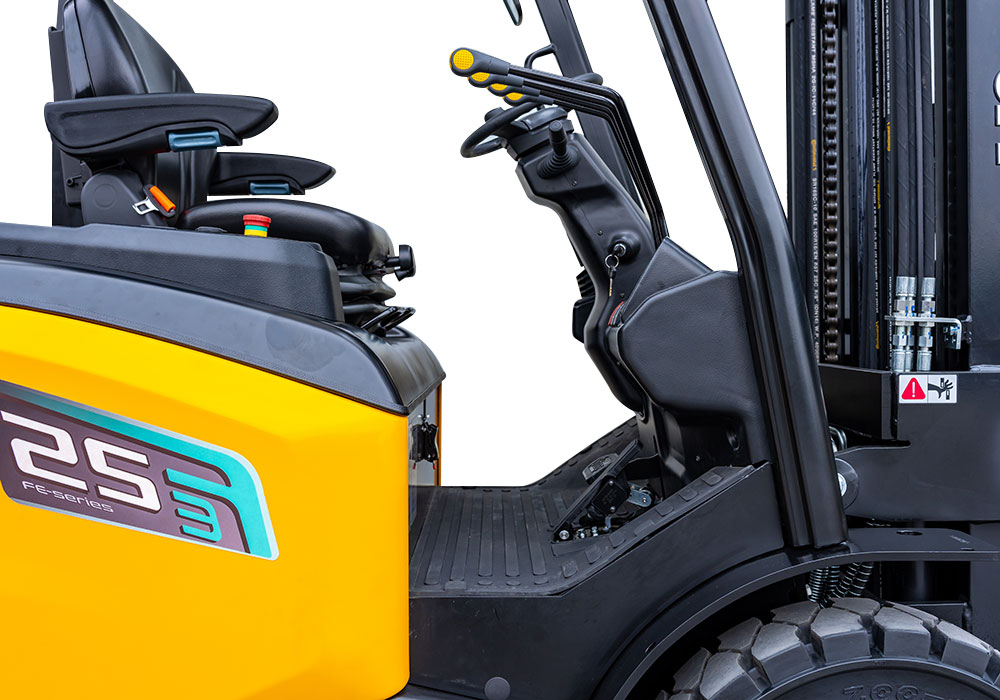

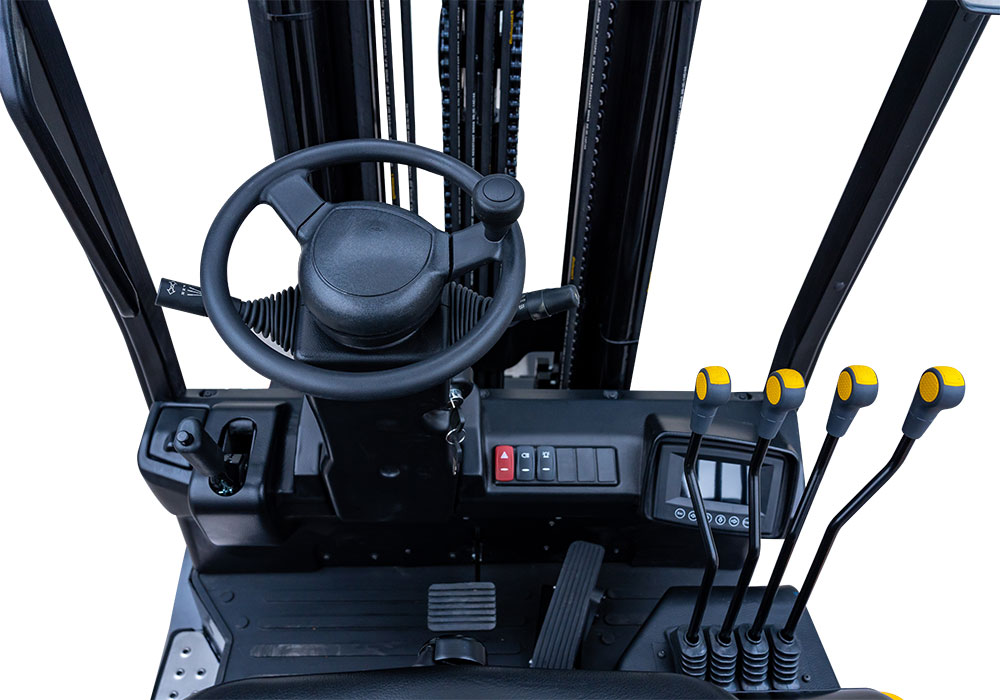

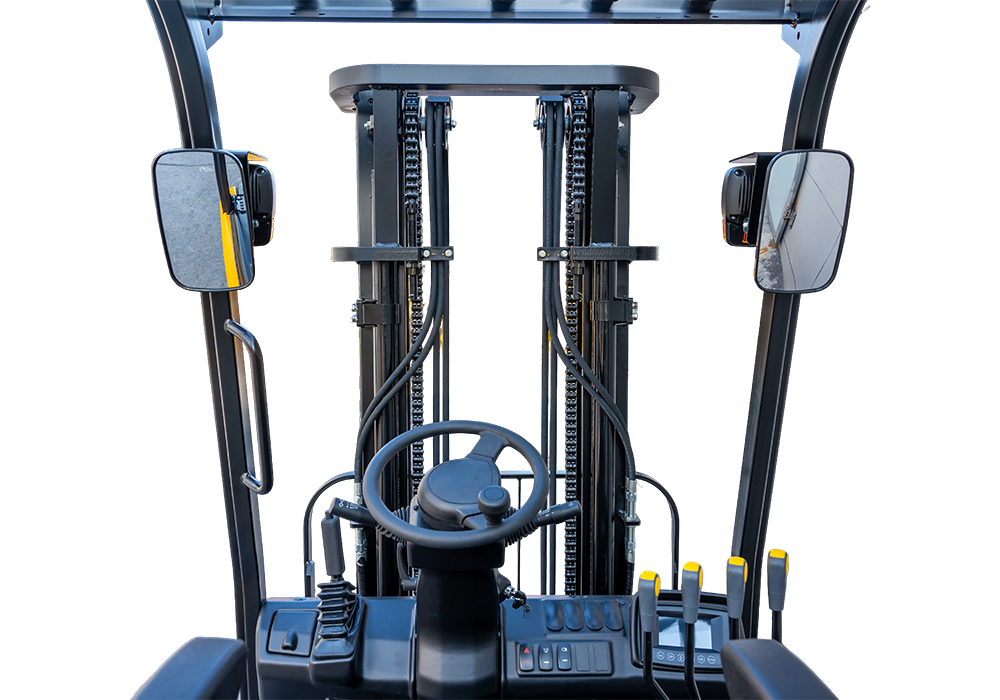

Superior Ergonomics ● Adopt new ratchet-type handbrake. ● Adjustable steering wheel. ● Adjustable seat. ● Multi-function color screen instrument. ● File folder provide practical storage solutions. ● USB for mobile devices. |
 |
 |

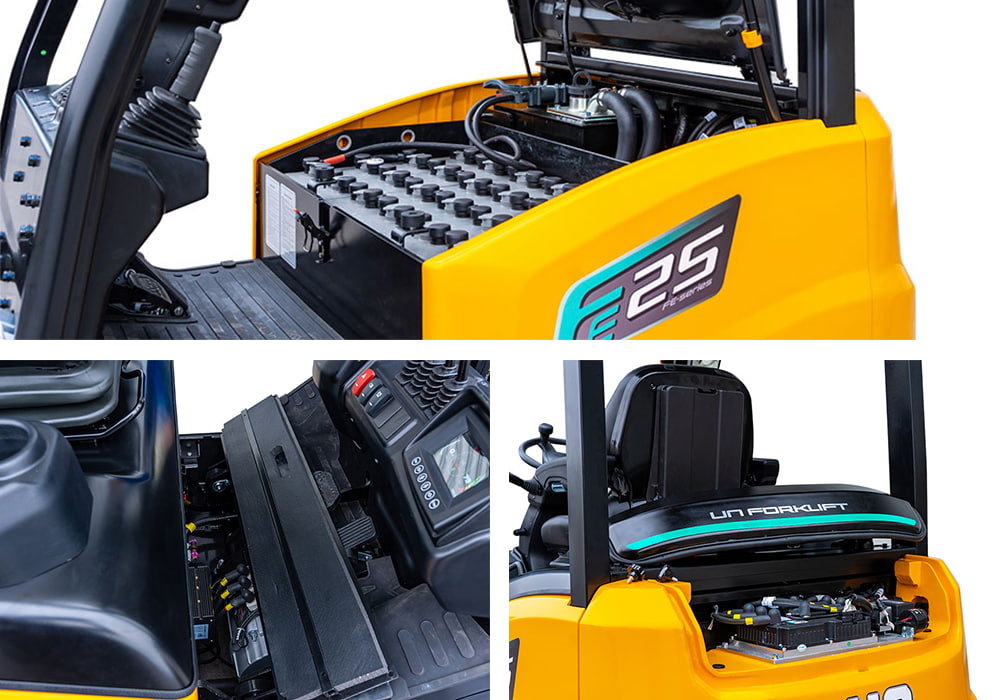

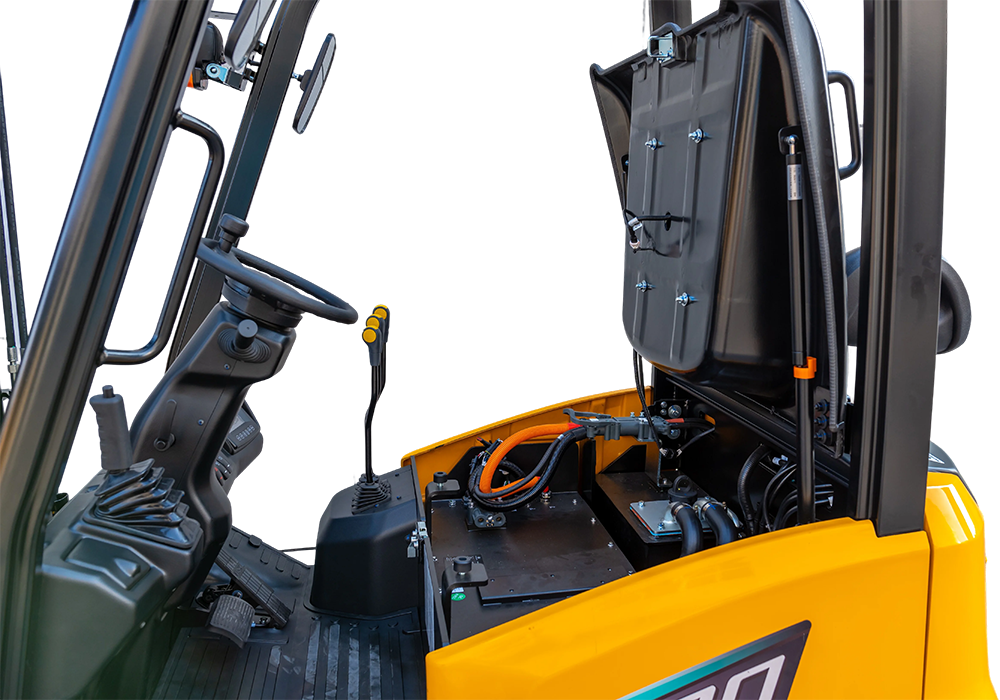

Easy Maintenance ● Fully opening engine cover. |
|
Easy Maintenance ● Fully opening electrical control cover. |
 |
 |
Easy Maintenance ● Tool-free removable floor plate. |
MAIN SPECIFICATIONS
|
Distinguishing mark |
1 |
Manufacturer |
UN | |
|
2 |
Model |
FB25-FENQZC |
||
|
3 |
Drive: Electric(battery or mains), Diesel, Petrol,fuel gas |
Electric |
||
|
4 |
Operator type: Hand, Pedestrian, Standing, Seated, order-picker |
Seated |
||
|
5 |
Load capacity /rated load |
Q(kg) |
2500 |
|
|
6 |
Load centre distance |
c(mm) |
500 |
|
|
7 |
Load distance, center of drive axle to fork |
x(mm) |
462 |
|
|
8 |
Wheelbase |
y(mm) |
1520 |
|
|
Weight |
9 |
Total Weight |
kg |
4220 |
|
10 |
Axle loading, loaded front/rear |
kg |
5990/730 |
|
|
11 |
Axle loading, unloaded front/rear |
kg |
1900/2320 |
|
|
Tyres, chassis |
12 |
Tires: Solid rubber, Superelastic, Pneumatic, Polyurethane |
pneumatic |
|
|
13 |
Tyre size (Front x 2) |
7.00-12-12PR |
||
|
14 |
Tyre size (Rear x 2) |
18×7-8-14PR |
||
|
15 |
Front tread |
b10(mm) |
980 |
|
|
16 |
Rear tread |
b11(mm) |
960 |
|
|
Dimensions |
17 |
Tilt of mast/fork carriage forward/backward |
α/β（°） |
6°/12° |
|
18 |
Mast lowered height |
h1(mm) |
2050 |
|
|
19 |
Free lift height |
h2(mm) |
120 |
|
|
20 |
Rated lift height |
h3(mm) |
3000 |
|
|
21 |
Mast extended height (With backrest) |
h4(mm) |
4051 |
|
|
22 |
Overhead guard height |
h6(mm) |
2200 |
|
|
23 |
Length to face of fork (Without fork) |
l2(mm) |
2345 |
|
|
24 |
Overall width |
b1(mm) |
1180 |
|
|
25 |
Fork size (l×e×s) |
l/e/s(mm) |
1070×120×40 |
|
|
26 |
Distance between fork-arms |
b5(mm) |
245/1030 |
|
|
27 |
Ground clearance (Laden,below mast) |
m1(mm) |
110 |
|
|
28 |
Ground clearance (Centre of wheelbase) |
m2(mm) |
120 |
|
|
29 |
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
3720 |
|
|
30 |
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
3920 |
|
|
31 |
Turning radius (Outside) |
Wa(mm) |
2060 |
|
|
Performance data |
32 |
Travel speed (Full load) |
km/h |
13 |
|
33 |
Travel speed (No load) |
km/h |
14 |
|
|
34 |
Lifting speed (Full load) |
mm/s |
350 |
|
|
35 |
Lifting speed (No load) |
mm/s |
450 |
|
|
36 |
Max.Gradeability (Full load) |
% |
15 |
|
|
37 |
Max.Gradeability (No load) |
% |
15 |
|
|
38 |
Max.Drawbar pull (laden/unladen) |
N |
13500 |
|
|
39 |
Service brake |
Hydraulic |
||
|
40 |
Parking brake |
Mechanical |
||
|
Electricengine |
41 |
Drive motor rating S2-60min |
kw |
11 |
|
42 |
Lift motor rating at S3-15min |
kw |
21 |
|
|
43 |
Battery voltage, nominal capacity |
V/Ah |
48/600 |
|
|
44 |
Battery weight |
kg |
930 |
|
|
Addition data |
45 |
Type of drive control |
MOS/AC |
|
|
46 |
Manufacturer |
ZAPI |
||
|
47 |
Operating pressure (For attachments) |
Mpa |
20.5 |
Specifications and characteristics are subject to change without notice.
Please contact us for detailed information.
