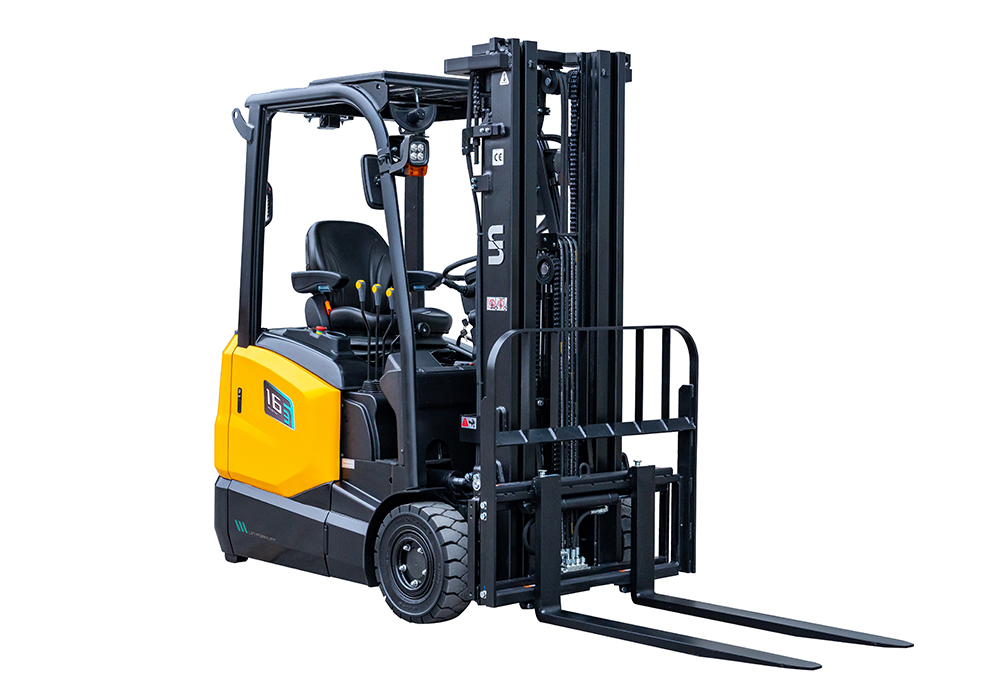

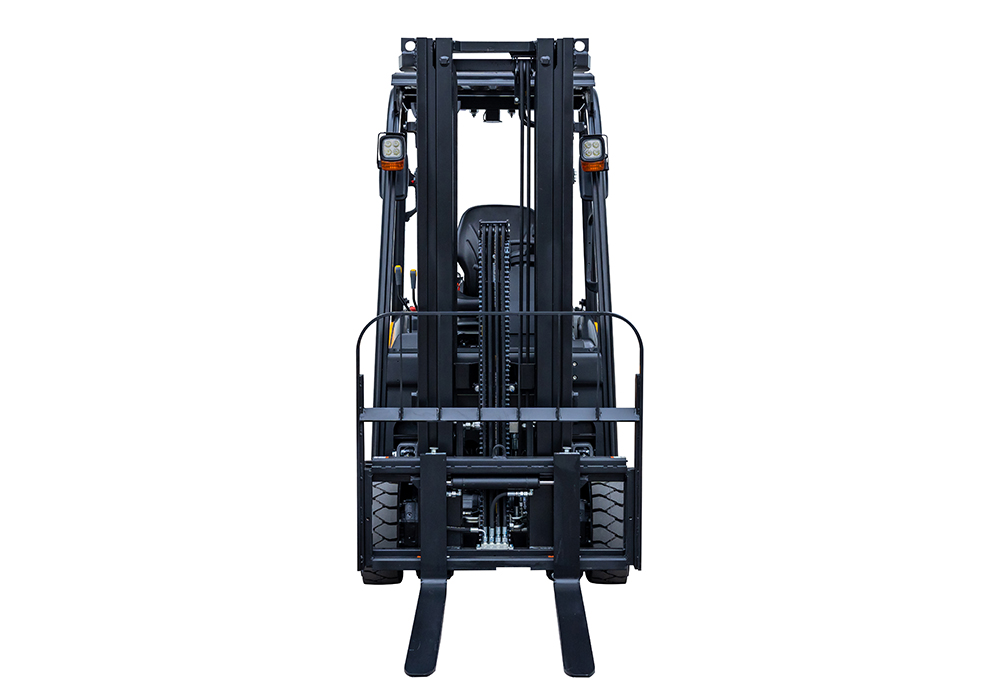

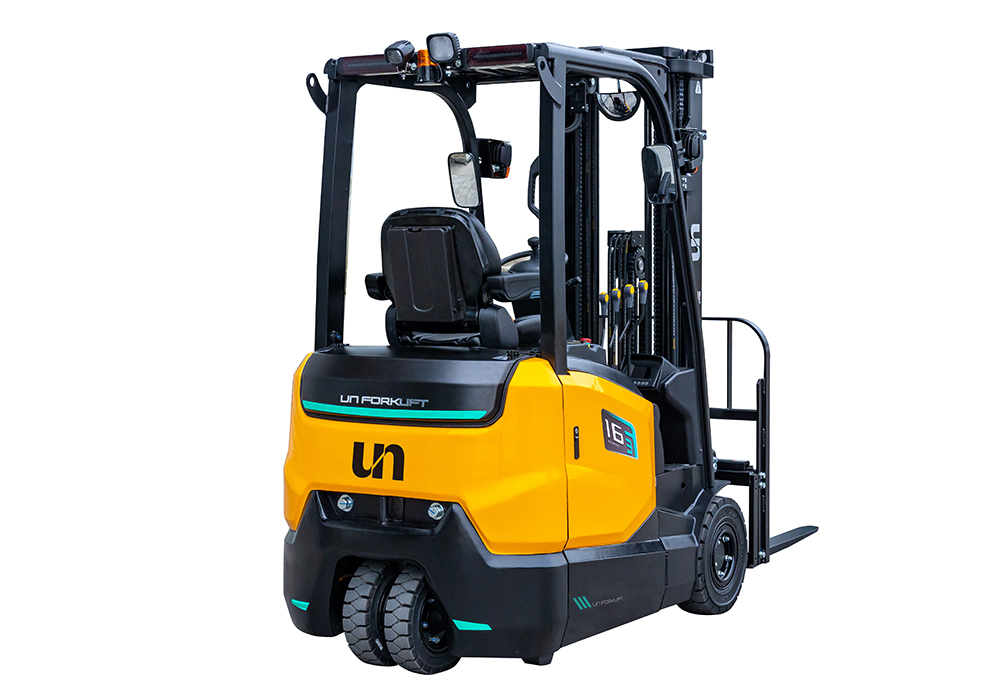

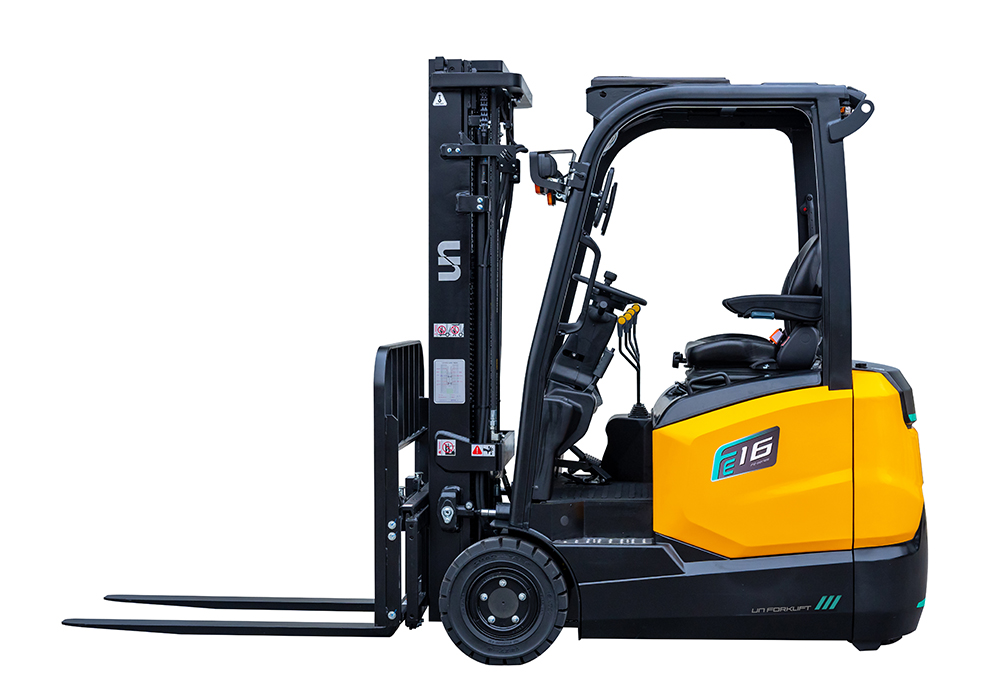

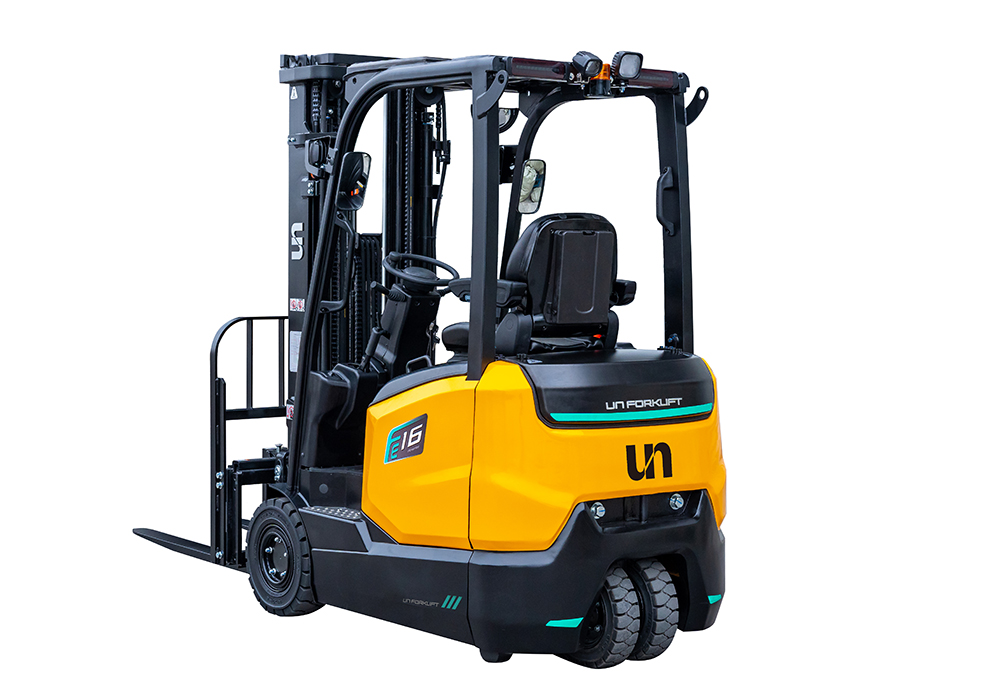

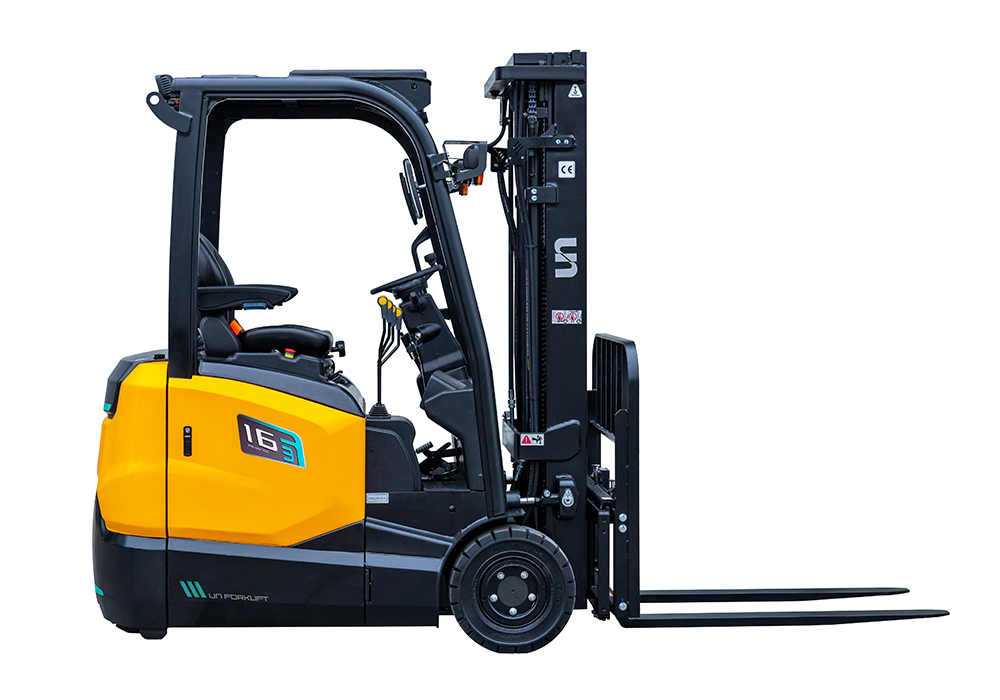

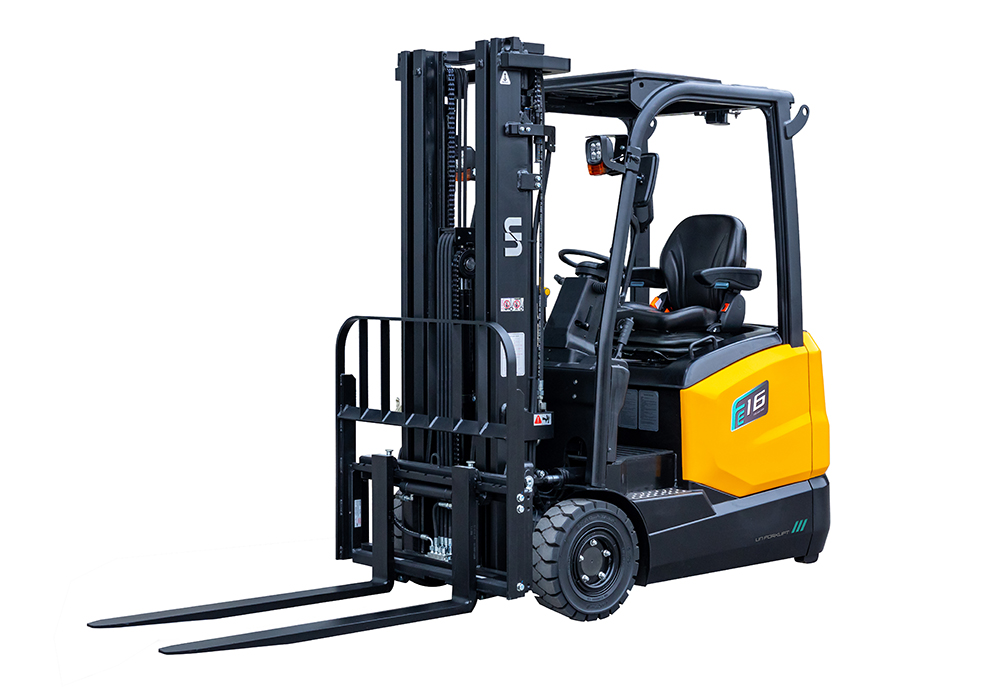

The FE Series 3-wheel electric forklift (Capacity:1.6-2.0T) is a fully upgraded model developed on the basis of the original V Series. This series has undergone comprehensive enhancements in appearance , comfort, safety, and maintainability, etc.
 |
Appearance ● With a brand-new design, the forklift features a compact structure, smooth lines, and vibrant colors create a striking and modern look. |
|
High Performance ● Dual drive motors deliver powerful performance. ● Load-sensing steering gear, increasing the lift speed. ● Multiple speed modes. ● Equipped with a high-power hydraulic pump motor & a low-noise, high-displacement pump. ● ZAPI controller utilizes high-frequency MOSFET integrated control mode. ● AC controller enables computer-controlled operations for driving, steering, lifting, and tilting. ● High-capacity battery provides longer runtime and stronger power output. |
 |
 |

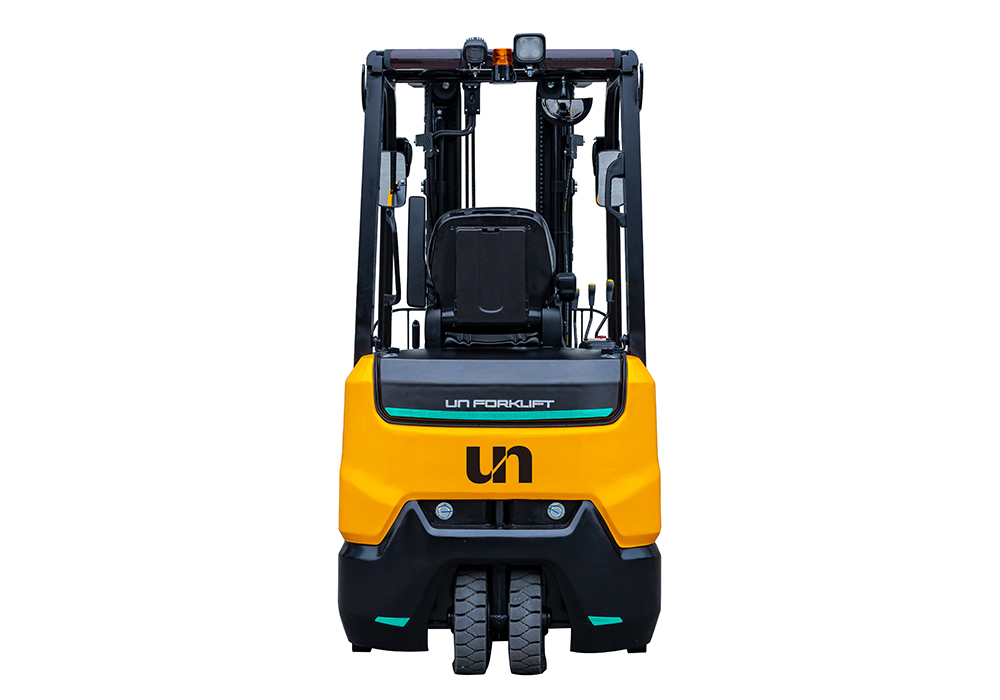

Safety & Reliability ● Robust stamped OHG ● Electric braking combined with wet braking, providing dual-layer protection. ● Standard equipped with proportional lifting function. ● Double rear tires enhance stability. ● Dual drive motors deliver powerful performance. ● Standard turning speed deceleration function. ● High-capacity battery provides longer runtime and stronger power output. ● 3rd-generation battery , with IP67 waterproof & dustproof. |
|

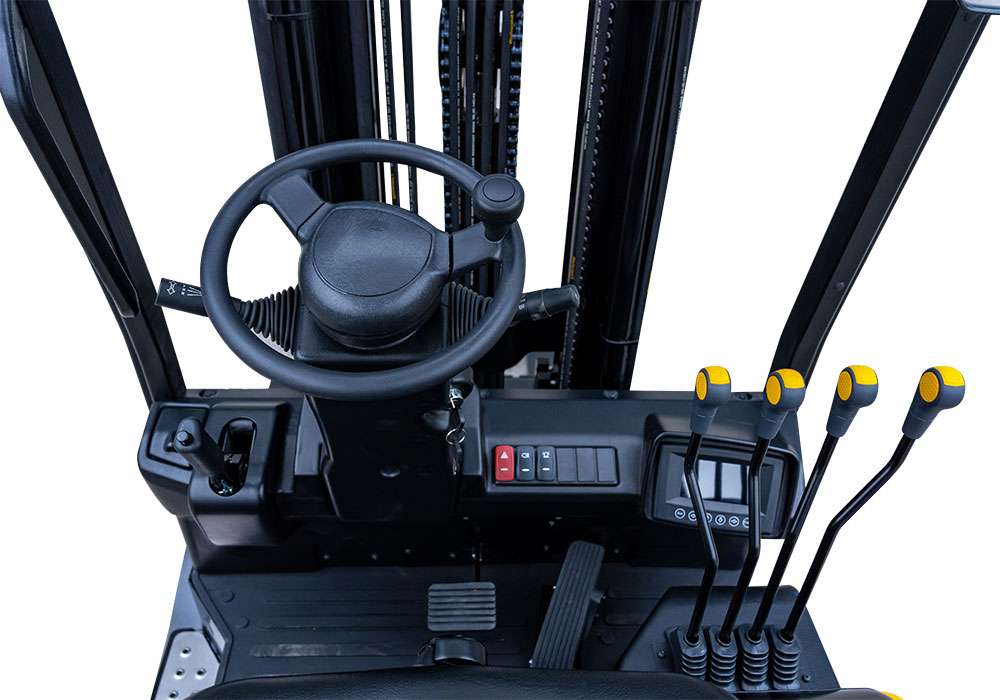

Superior Ergonomics ● Adjustable steering wheel enhances comfort. ● Adjustable seat. ● Fully enclosed instrument console. ● Multi-function color screen instrument. |
 |
 |

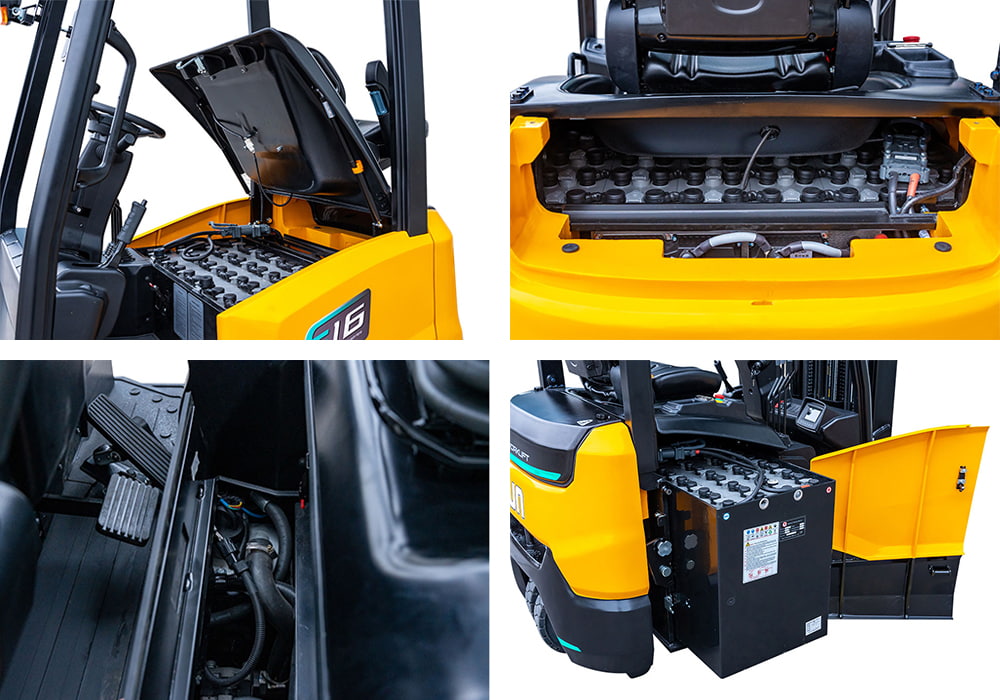

Easy Maintenance ● Fully opening engine cover. |
|
Easy Maintenance ● Fully opening electrical control cover. |
 |
 |
Easy Maintenance ● Tool-free removable floor plate. |
|
Easy Maintenance ● Side battery extraction system. |
 |
MAIN SPECIFICATIONS
| Distinguishing Mark | 1 | Manufacturer | UN | ||||||||
| 2 | Model | FBT16-FENQZC | |||||||||
| 3 | Drive: Electric(battery or mains), Diesel, Petrol,fuel gas | Electric | |||||||||
| 4 | Operator type: Hand, Pedestrian, Standing, Seated, order-picker | Seated | |||||||||
| 5 | Load capacity /rated load | Q(kg) | 1600 | ||||||||
| 6 | Load centre distance | c(mm) | 500 | ||||||||
| 7 | Load distance, center of drive axle to fork | x(mm) | 375 | ||||||||
| 8 | Wheelbase | y(mm) | 1355 | ||||||||
| Weight | 9 | Total Weight | kg | 3280 | |||||||
| Tyres & chassis | 10 | Tires:Solid rubber,Superelastic,Pneumatic, Polyurethane | pneumatic | ||||||||
| 11 | Tyre size (Front x 2) | 18X7-8 | |||||||||
| 12 | Tyre size (Rear x 2) | 15×4.5-8 | |||||||||
| 13 | Front tread | b10(mm) | 918 | ||||||||
| 14 | Rear tread | b11(mm) | 180 | ||||||||
| Dimensions | 15 | Tilt of mast/fork carriage forward/backward | α/β（°） | 6°/6° | |||||||
| 16 | Mast lowered height | h1(mm) | 2025 | ||||||||
| 17 | Free lift height | h2(mm) | 85 | ||||||||
| 18 | Rated lift height | h3(mm) | 3000 | ||||||||
| 19 | Mast extended height (With backrest) | h4(mm) | 4052 | ||||||||
| 20 | Overhead guard height | h6(mm) | 2085 | ||||||||
| 21 | Length to face of fork (Without fork) | l2(mm) | 1930 | ||||||||
| 22 | Overall width | b1(mm) | 1090 | ||||||||
| 23 | Fork size (l×e×s) | l/e/s(mm) | 920×100×35 | ||||||||
| 24 | Distance between fork-arms | b5(mm) | 200/1010 | ||||||||
| 25 | Ground clearance (Laden,below mast) | m1(mm) | 115 | ||||||||
| 26 | Ground clearance (Centre of wheelbase) | m2(mm) | 103 | ||||||||
| 27 | Aisle width for pallets 1000×1200 crossways | Ast(mm) | 3261 | ||||||||
| 28 | Aisle width for pallets 800×1200 lengthways | Ast(mm) | 3386 | ||||||||
| 29 | Turning radius (Outside) | Wa(mm) | 1560 | ||||||||
| Performance Data | 30 | Travel speed (Full load) | km/h | 13 | |||||||
| 31 | Travel speed (No load) | km/h | 14 | ||||||||
| 32 | Lifting speed (Full load) | mm/s | 300 | ||||||||
| 33 | Lifting speed (No load) | mm/s | 440 | ||||||||
| 34 | Max.Gradeability (Full load) | % | 15 | ||||||||
| 35 | Max.Gradeability (No load) | % | 15 | ||||||||
| 36 | Service brake | Hydraulic | |||||||||
| 37 | Parking brake | Mechanical | |||||||||
| Electric Engine | 38 | Drive motor rating S2-60min | kw | 2×4.8 | |||||||
| 39 | Lift motor rating at S3-15min | kw | 9.5 | ||||||||
| 40 | Battery voltage, nominal capacity | V/Ah | 48V/460Ah | ||||||||
| 41 | Battery weight | kg | 748 | ||||||||
| Addition Data | 42 | Type of drive control | MOS/AC | ||||||||
| 43 | Manufacturer | ZAPI | |||||||||
| 44 | Operating pressure (For attachments) | Mpa | 17.5 | ||||||||
Specifications and characteristics are subject to change without notice.
Please contact us for detailed information.
