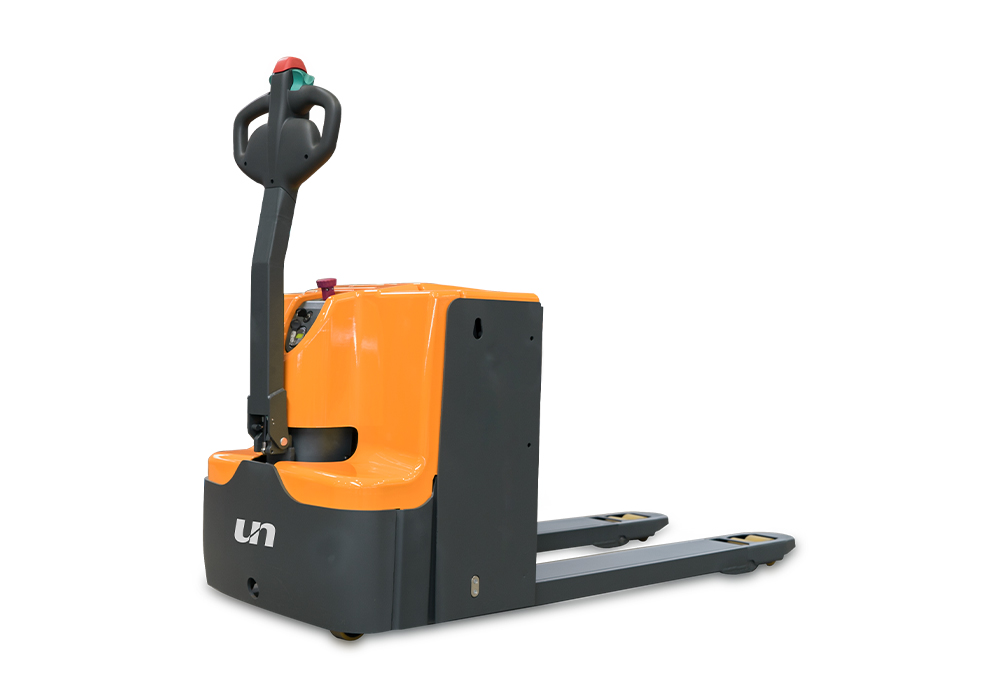

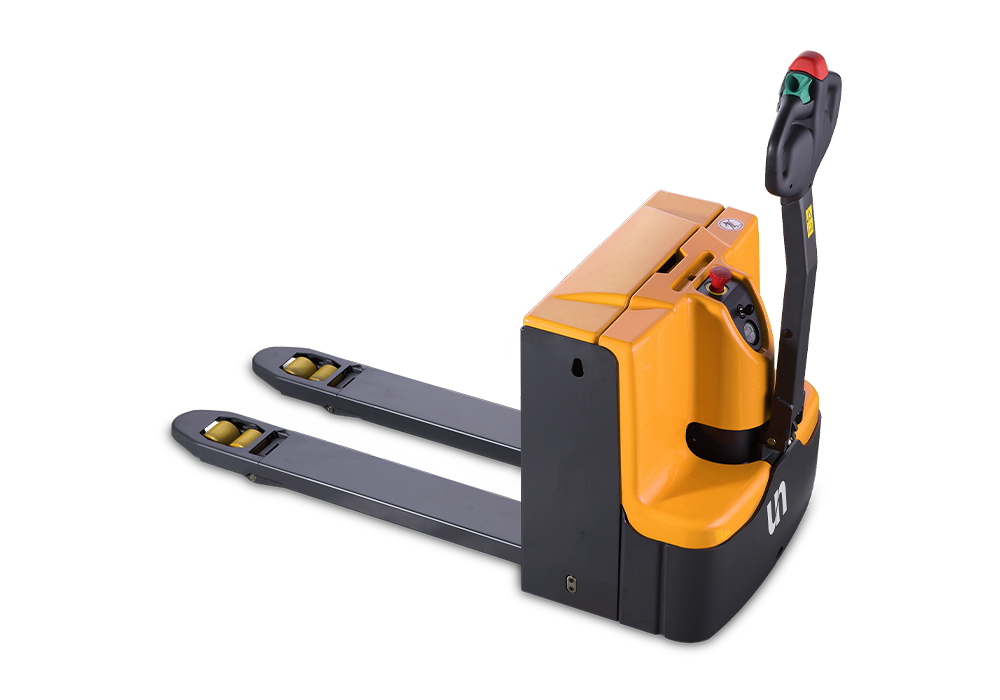

Electric Pallet Truck PT16/20/25L

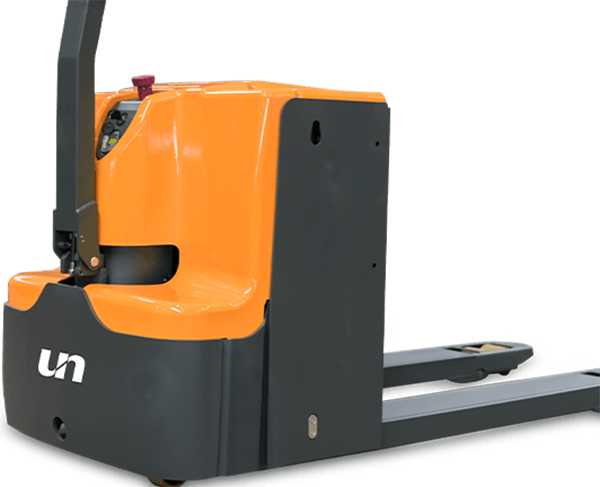

Long tiller design for ergonomics and safety

● With long tiller design the operator can always keep a safe distance to the truck during proceeding the work very ergonomically. The design ensures lower operational forces. The tillers operating height is naturally positioned to ergonomic,operator friendly controlling positions.

German AC drive technology

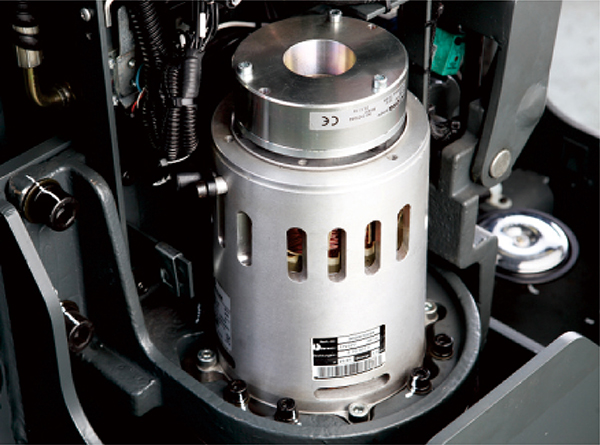

● The powerful German Schabmueller maintenance free AC Drive motor in combination with the German Korfel gearbox ,Intorqe brake and wicke drive wheel give best performance, efficiency and reliability to reduce the running costs.

Various options

● Load backrest.

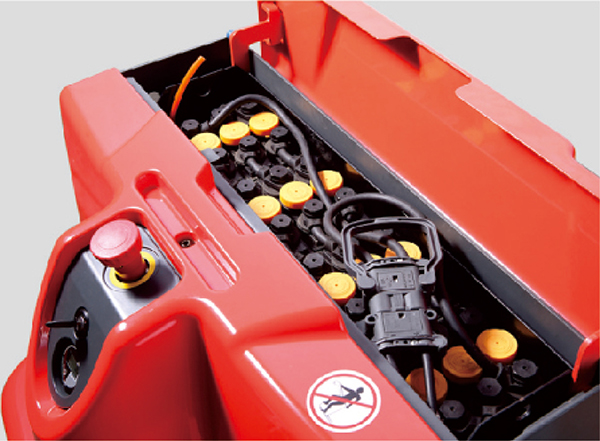

● Sideways battery exchange.

● Different fork-versions on request.

CAN-BUS Technology

● The CAN-BUS technology is due to less wiring more reliable. For maintenance it makes analysis and adjustments easier so that the downtime is lower than for trucks without CANBUS. Digital signals further makes parts longer lasting than analogue signals.

Distinguishing

mark

1.2

Manufacturer's type designation

PT16L

PT20L

PT25L

1.3

Drive

Battery

1.4

Operator type

Pedestrian

1.5

Load Capacity / rated load

Q (t)

1.6

2.0

2.5

1.6

Load centre distance

c (mm)

 600

1.8

Load distance, centre of drive axle to fork

x (mm)

892

1.9

Wheelbase

y (mm)

1261

1327

1541

Weight

2.1

Service weight

kg

445

535

720

2.2

Axle loading, laden front/rear

kg

715/1330

855/1680

1040/2200

2.3

Axle loading, unladen front/rear

kg

345/100

415/120

540/200

Tires, chassis

3.1

Tires

Polyurethane (PU)

3.2

Tire size.front

∅x w (mm)

∅230x70

3.3

Tire size,rear

∅x w (mm)

∅84x84

3.4

Additional wheels(dimensions)

∅x w (mm)

∅100x40

3.5

Wheels,number front/rear(x=driven wheels)

1X+2/4

3.6

Tread, front

b10 (mm)

510

3.7

Tread, rear

K (mm)

367/512

Dimensions

4.4

Lift

h3 (mm)

120

4.9

Height of tiller in drive position min./ max.

h14 (mm)

800/1335

4.15

Height, lowered

h13 (mm)

85

4.19

Overall length

l1(mm)

1670

1735

1950

4.20

Length to face of forks

l2 (mm)

520

595

810

4.21

Overall width

b1 (mm)

729

4.22

Fork dimensions

s/e/l (mm)

60/173/1150

4.25

Width across forks

b5 (mm)

540/685

4.32

Ground clearance, centre of wheelbase

m2 (mm)

25

4.34

Aisle width for pallets 1000X1200 crossways

Ast (mm)

1885

1955

2175

4.34

Aisle width for pallets800X1200 lengthways

Ast (mm)

1935

2005

2225

4.35

Turning radius

Wa (mm)

1440

1490

1750

Performance data

5.1

Travel speed, laden/ unladen

km/h

5.7/6.0

5.7/6.0

5.5/6.0

5.2

Lift speed, laden/ unladen

m/s

0.025/0.035

0.022/0.030

0.035/0.045

5.3

Lowering speed, laden/ unladen

m/s

0.035/0.030

0.035/0.035

0.040/0.040

5.8

Max. gradeability, laden/ unladen

%

8/15

5.10

Service brake

Electromagnetic

Electric- engine

6.1

Drive motor rating S2 60min

kW

1.3

1.3

1.7

6.2

Lift motor rating at S3 10%

kW

0.8

0.8

2.2

6.3

Battery acc. to DIN 43531/35/ 36 A, B, C, no

2VBS

2PZS

3PZS

6.4

Battery voltage, nominal capacity K5

V/Ah

160

210

350

6.5

Battery weight

kg

150

215

285

6.6

Energy consumption acc. to VDI cycle

kWh/h

0.44

0.39

0.92

Additional data

8.1

Type of drive control

AC speed Control

8.4

Sound level at driver's ear acc. to EN 12053

dB(A)

67

69

65
