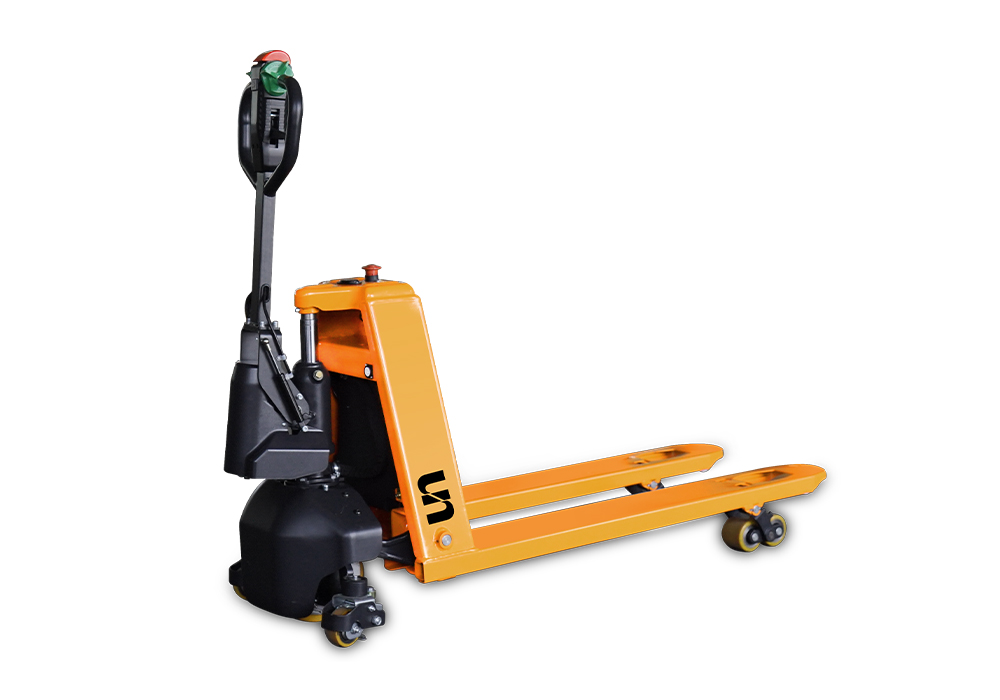

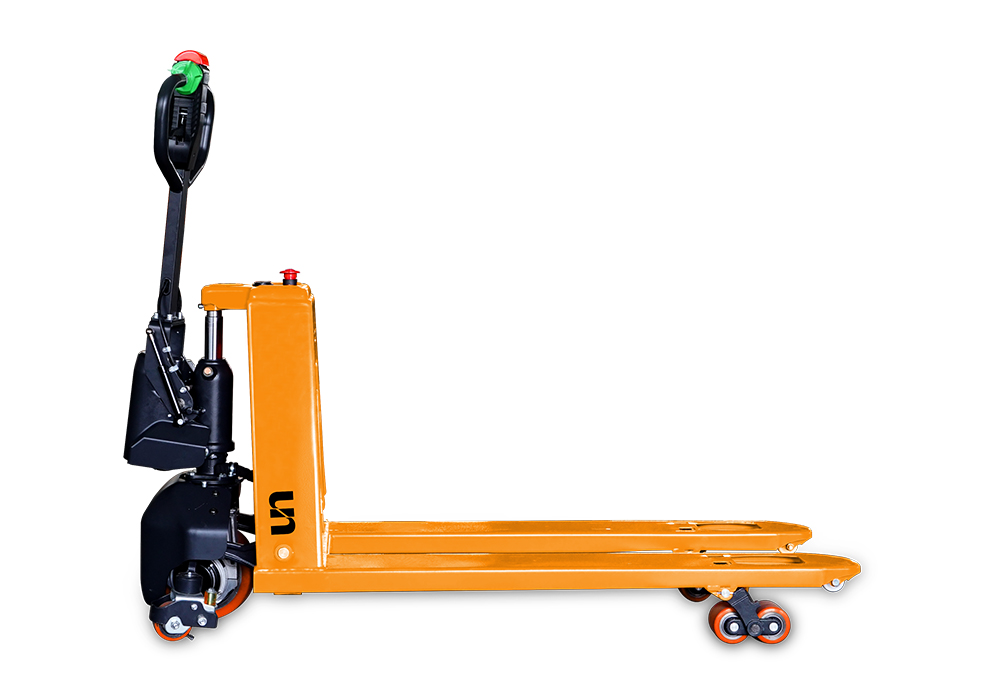

Electric Pallet Truck PTE15-C

Suspension Castor

● Optional bigger castor with excellent stability.

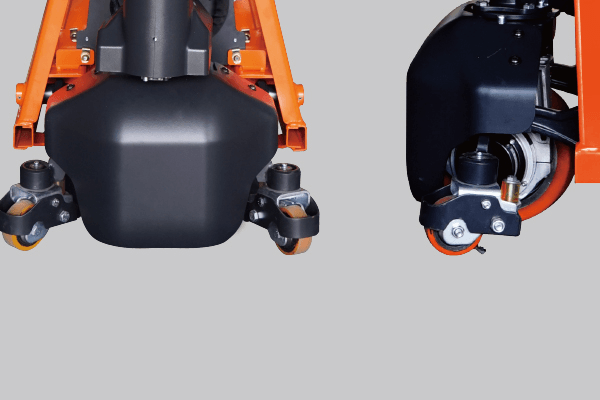

Drive system

● 48V DC brushless motor, maintenance free, big transmission ratio gearbox, high gradebility, low energy consumption.

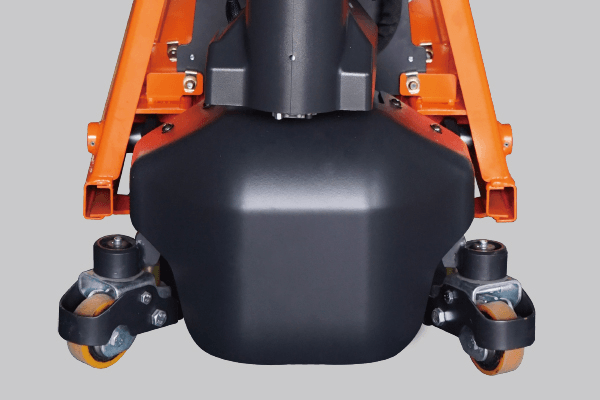

Fully enclosed drive wheel cover

● Rigid and robust fully enclosed drive wheel cover gives all-round foot protection for operator.

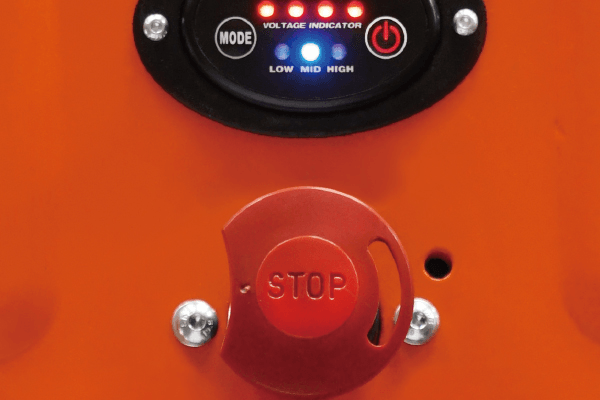

Emergency switch

● Emergency switch located where you can easily reach and control, assuring safety for people and truck.

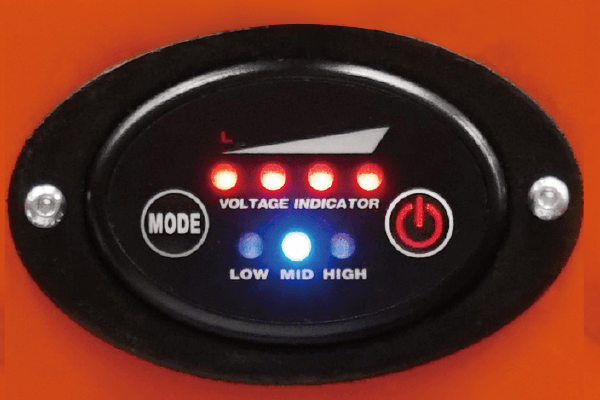

Multi-functional combo gauge

● Integrated with on/off button, battery discharge indicator, fault code, speed setting etc.

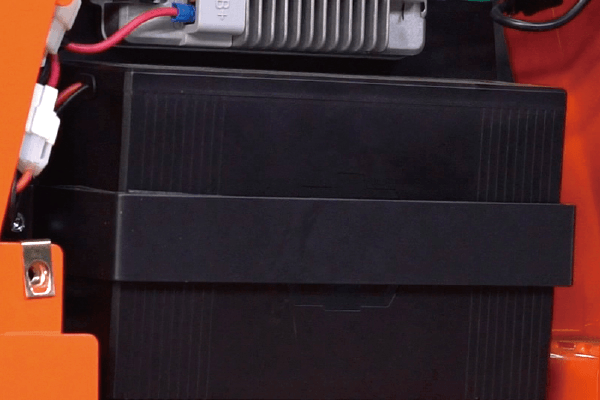

Lithium Iron Phosphate Battery

● 48v LFP battery, easy replacement, low energy consumption, long working time, safer and stable cell with long service life.

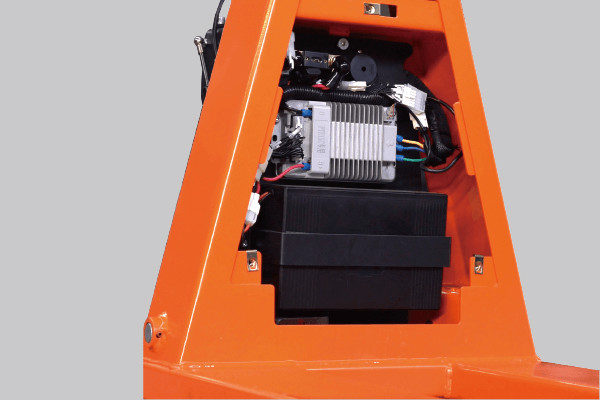

Controller kit

● One piece design allows for easy installation, maintenance and replacement.

Distinguishing mark

1.2

Manufacturer's type designation

PTE15-C

SPTE15-C

1.3

Drive

Battery

Battery

1.4

Operator type

Pedestrian

Pedestrian

1.5

Load Capacity / rated load

Q(t)

1.5

1.5

1.6

Load centre distance

c (mm)

600

600

1.8

Load distance, centre of drive axle to fork

x (mm)

950

950

1.9

Wheelbase

y (mm)

1200

1200

Weight

2.1

Service weight

kg

130

130

2.2

Axle loading, laden front/rear

kg

570/ 1060

570 / 1060

2.3

Axle loading, unladen front/rear

kg

100/30

100/30

Tyres, chassis

3.1

Tires

Polyurethane

Polyurethane

3.2

Tire size, ront

∅xw (mm)

∅210x70

∅210x70

3.3

Tire size, rear

∅xw (mm)

∅80x93 / ∅80x70

∅80x93 / ∅80x70

3.4

Additional wheels(dimensions)

∅xw (mm)

-/∅80x30

-/∅80x30

3.5

Wheels, number front/rear(x=driven wheels)

lx/2

lx/2

3.6

Tread, front

b10 (mm)

-/430

-/430

3.7

Tread,rear

b11 (mm)

380/525

380 / 525

Dimensions

4.4

Lift

h3 (mm)

115

115

4.9

Height of tiller in drive position min./ max.

h14 (mm)

680 /1190

680 /1190

4.15

Height, lowered

h13 (mm)

80

80

4.19

Overall length

l1(mm)

1595

1595

4.20

Length to face of forks

l2 (mm)

445

445

4.21

Overall width

b1 (mm)

540/685

540 / 685

4.22

Fork dimensions

s/e/l (mm)

47/ 160/ 1150

47/160/1150

4.25

Distance between fork-arms

b5 (mm)

540/685

540 / 685

4.32

Ground clearance, centre of wheelbase

m2 (mm)

37

37

4.34

Aisle width for pallets800X1200 lengthways (200mm safe distance)

Ast (mm)

2310

2310

4.35

Turning radius

Wa (mm)

1390

1390

Performance Data

5.1

Travel speed, laden/ unladen

km/h

4.5/4.8

4.5/4.8

5.2

Lift speed, laden/ unladen

m/s

0.015/0.02

Manual

5.3

Lowering speed, laden/ unladen

m/s

0.06/0.04

0.06/0.04

5.8

Max. gradeability, laden/ unladen

%

5/15

5/15

5.10

Service brake

Electromagnetic

Electromagnetic

Electric- engine

6.1

Drive motor rating S2 60min

kW

0.75

0.75

6.2

Lift motor rating at S3 10%

kW

0.8

-

6.3

Battery acc. to DIN 43531/35/36 A, B, C,  no

No

No

6.4

Battery voltage，nominal capacity K5

V/Ah

48/12

48/12

6.5

Battery weigh

kg

5

5

6.6

Energy consumption acc: to VDI cycle

kWh/h

0.1

0.1

Additional data

8.1

Type of drive control

BLDC

BLDC

8.4

Sound level at driver's ear acc. to EN 12053

dB(A)

<70

<70
