2000KG

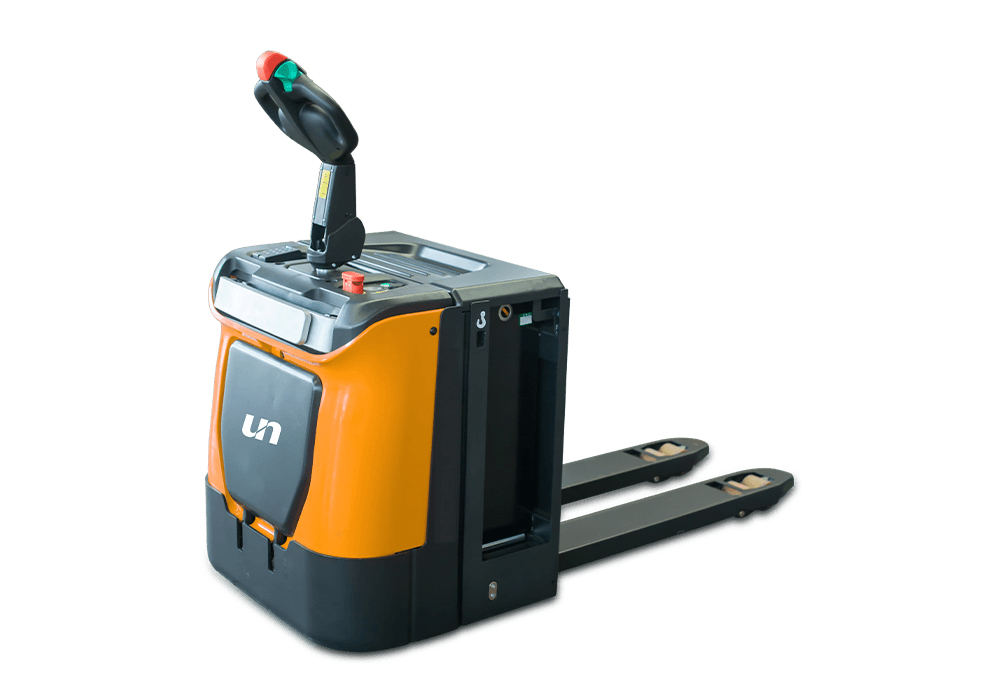

The new model range of short-tiller trucks introduced by UN Forklift has combined all the experience gained by the manufacturer over past years. By using of the most advanced solutions and top level components, the new range is ready to provide the top level of performance to its users.
 |

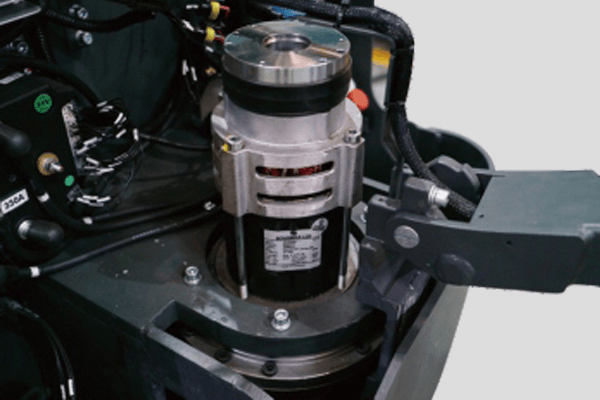

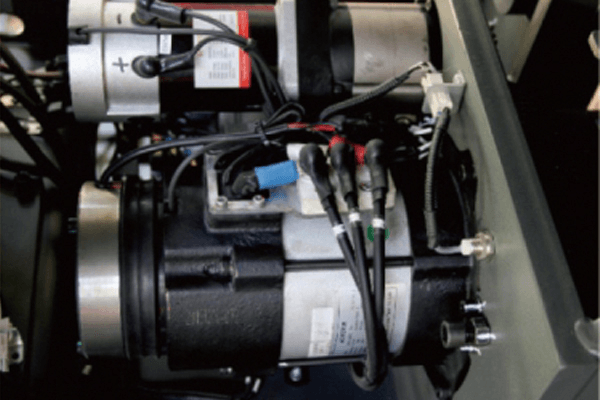

● Powerful AC-drive unit from the global industry leaders: the AC driving motor designed and produced by Schab muller comes together with the top quality ZF gearbox and it is equipped with Intorq electromagnetic brake. The drive unit can provide the drive speed up to 8 km/h. The use of top level quality drive wheels from German manufacturers Rader Vogel or Wicke helps to ensure the long life time of PU tires. |

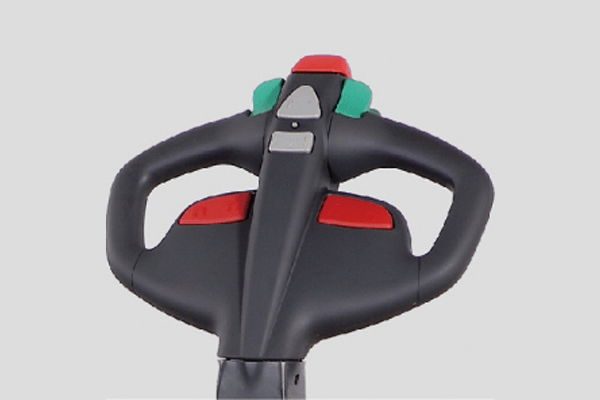

| ● Rema tiller delivers high level of ergonomics as well as reliability of control system. In addition, the tiller ensures a long life-time thanks to the contactless rocker switches designed for lifting/lowering function. |  |
 |
● The model range can be equipped with Lithium batteries. The use of lithium solution allow you to enjoy benefits of Lithium technology such as Fast charging, Opportunity charging, Maintenance free, Environmental-friendly, Smart Diagnosis of battery status, Lower cost of Total Ownership with long service life. |

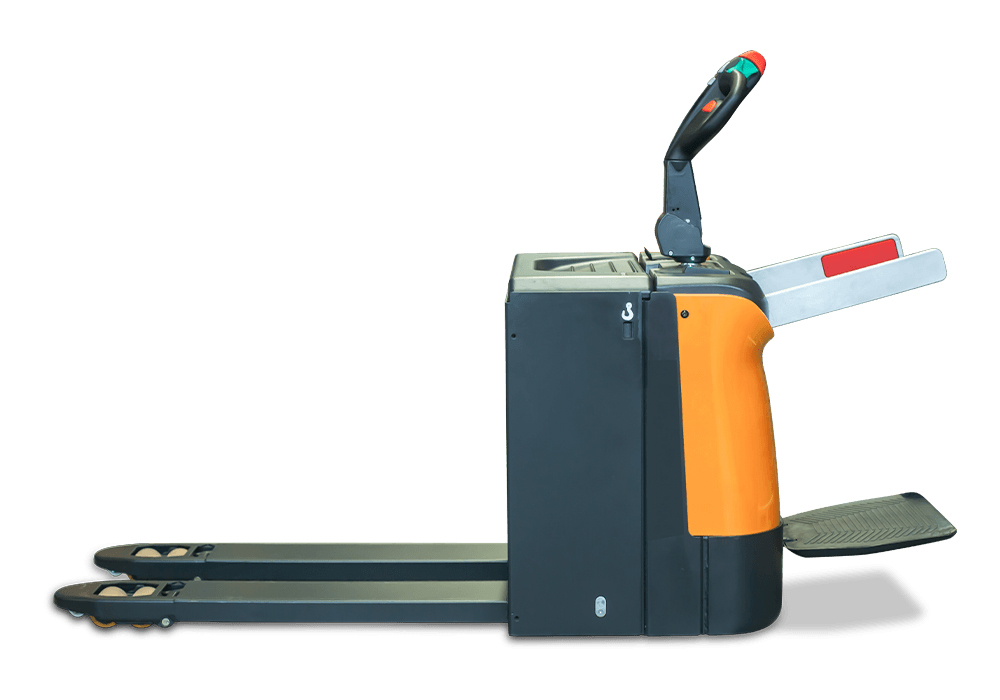

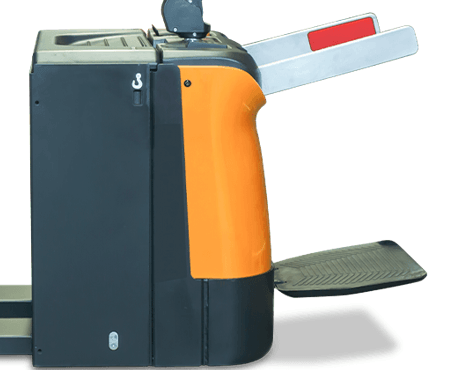

| ● The integrated design of operator's platform and protective arms as well as totally new internal structure allows to ensure the smallest body length and provide extremely low turning radius among competitors. Together with this, the suspension system for the platform helps to provide the high level of comfort to operators. |  |
 |

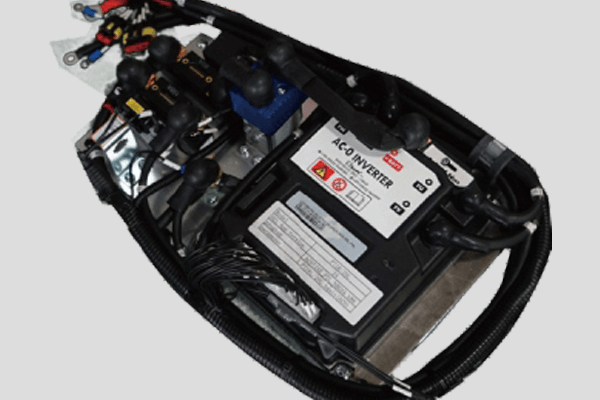

● The driving controllers and steering controllers are manufactured by Zapi (Italy) - the leading European brand with long history in the industry, which provides extremely reliable and flexible solutions with high performance level of the control system. |

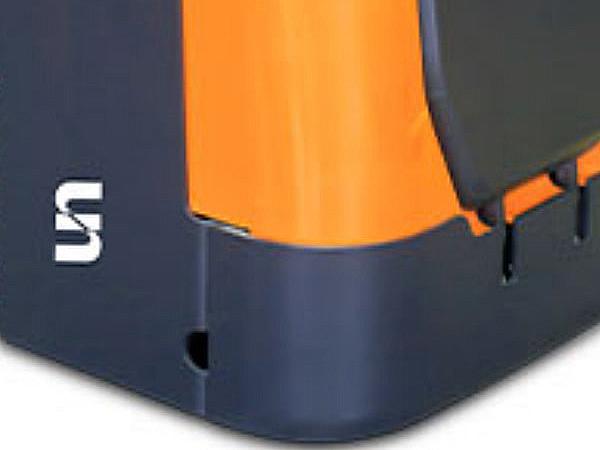

| ● The use of apron with 8 mm thickness allows to ensure the robustness of chassis and its strength even in case of collision against objects. The strong battery cover made out of steel helps to provide a high level of strength for this part. |  |
MAIN SPECIFICATIONS
|
Distinguishing mark |
1.2 |
Manufacturer's type designation |
|
PT20N |
PT25N |
|
1.3 |
Drive |
|
Battery |
||
|
1.4 |
Operator type |
|
Pedestrian/Stand |
||
|
1.5 |
Load Capacity / rated load |
Q(t) |
2.0 |
2.5 |
|
|
1.6 |
Load centre distance |
c (mm) |
600 |
600 |
|
|
1.8 |
Load distance ,centre of drive axle to fork |
x (mm) |
8921) |
8921) |
|
|
1.9 |
Wheelbase |
y (mm) |
13301)2) |
14351) |
|
|
Weight |
2.1 |
Service weight |
kg |
620 |
770 |
|
2.2 |
Axle loading, laden front/rear |
kg |
1110/1510 |
1370/1900 |
|
|
2.3 |
Axle loading, unladen front/rear |
kg |
500/120 |
610/160 |
|
|
Tires, chassis |
3.1 |
Tires |
|
Polyurethane (PU) |
|
|
3.2 |
Tire size,front |
∅x w (mm) |
∅230x70 |
||
|
3.3 |
Tire size,rear |
∅x w (mm) |
∅84x84 |
||
|
3.4 |
Additional wheels(dimensions) |
∅x w (mm) |
∅100x40 |
||
|
3.5 |
Wheels, number front/rear(x=driven wheels) |
|
1x+2/4 |
||
|
3.6 |
Tread, front |
b10 (mm) |
540 |
||
|
3.7 |
Tread, rear |
b11(mm) |
367/512 |
||
|
Dimensions |
4.4 |
Lift |
h3 (mm) |
120 |
|
|
4.9 |
Height of tiller in drive position min./ max. |
h14 (mm) |
950/1350 |
||
|
4.15 |
Height, lowered |
h13 (mm) |
85 |
||
|
4.19 |
Overall length |
l1 (mm) |
17902) 3) |
1895 |
|
|
4.20 |
Length to face of forks |
l2 (mm) |
6402) 3) |
7453) |
|
|
4.21 |
Overall width |
b1(mm) |
790 |
||
|
4.22 |
Fork dimensions |
s/e/l (mm) |
55/173/1150 |
||
|
4.25 |
Width across forks |
b5 (mm) |
540/685 |
||
|
4.32 |
Ground clearance, centre of wheelbase |
m2 (mm) |
30 |
||
|
4.34 |
Aisle width for pallets 1000X1200 crossways |
Ast (mm) |
24 002)3) |
25053) |
|
|
4.34 |
Aisle width for pallets 800X1200 lengthways |
Ast (mm) |
22 902) 3) |
23953) |
|
|
4.35 |
Turning radius |
Wa (mm) |
15852) 3) |
16903) |
|
|
Performance data |
5.1 |
Travel speed, laden/ unladen |
km/h |
7.5/8.0 |
6.0/7.0 |
|
5.2 |
Lift speed, laden/ unladen |
m/s |
0.025/0.030 |
0.035/0.045 |
|
|
5.3 |
Lowering speed, laden/ unladen |
m/s |
0.030/0.025 |
0.045/0.050 |
|
|
5.8 |
Max. gradeability, laden/ unladen |
% |
8/15 |
||
|
5.10 |
Service brake |
|
Electromagnetic |
||
|
Electric- engine |
6.1 |
Drive motor rating S2 60min |
kW |
1.4 |
|
|
6.2 |
Lift motor rating at S3 10% |
kW |
0.8 |
2.2 |
|
|
6.3 |
Battery acc. to DIN 43531/ 35/ 36 A, B, C, no |
|
/ |
/ |
|
|
6.4 |
Battery voltage, nominal capacity K5 |
V/Ah |
24/160-210 |
24/270-350 |
|
|
6.5 |
Battery weight |
kg |
155-200 |
235-285 |
|
|
6.6 |
Energy consumption acc. to VDI cycle |
kWh/h |
0.36 |
0.90 |
|
|
Additional data |
8.1 |
Type of drive control |
|
AC speed Control |
|
|
8.4 |
Sound level at driver's ear acc. to EN 12053 |
dB(A) |
69 |
||
1) Load section lowered:+65mm;
2) With side battery removal:+30mm;
3) With unfolded platform:+440mm.
Specifications and characteristics are subject to change without notice.
Please contact us for detailed information.
