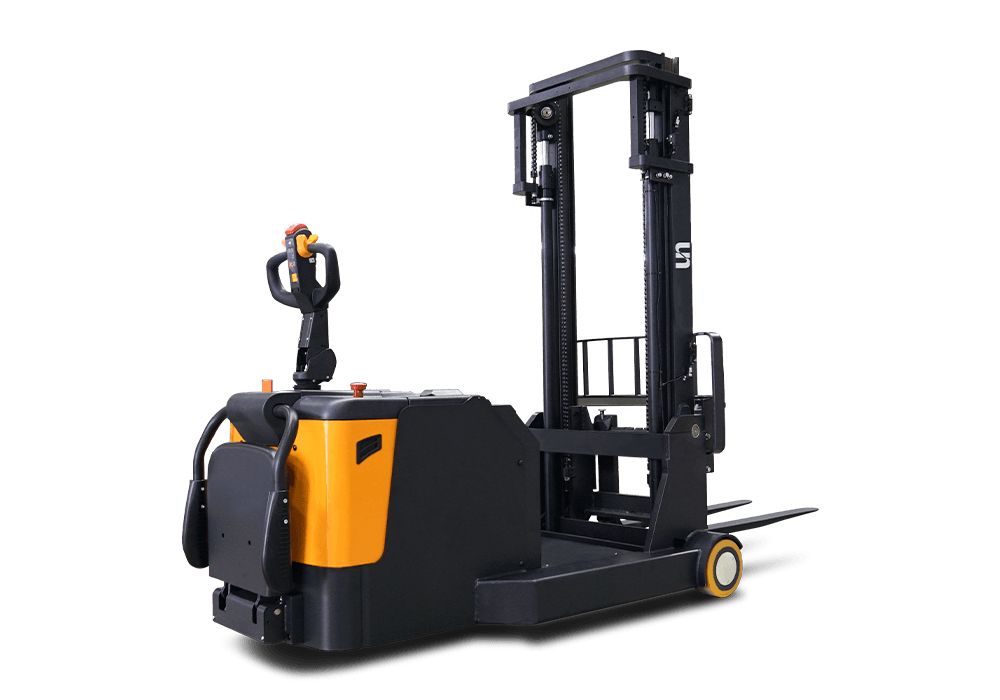

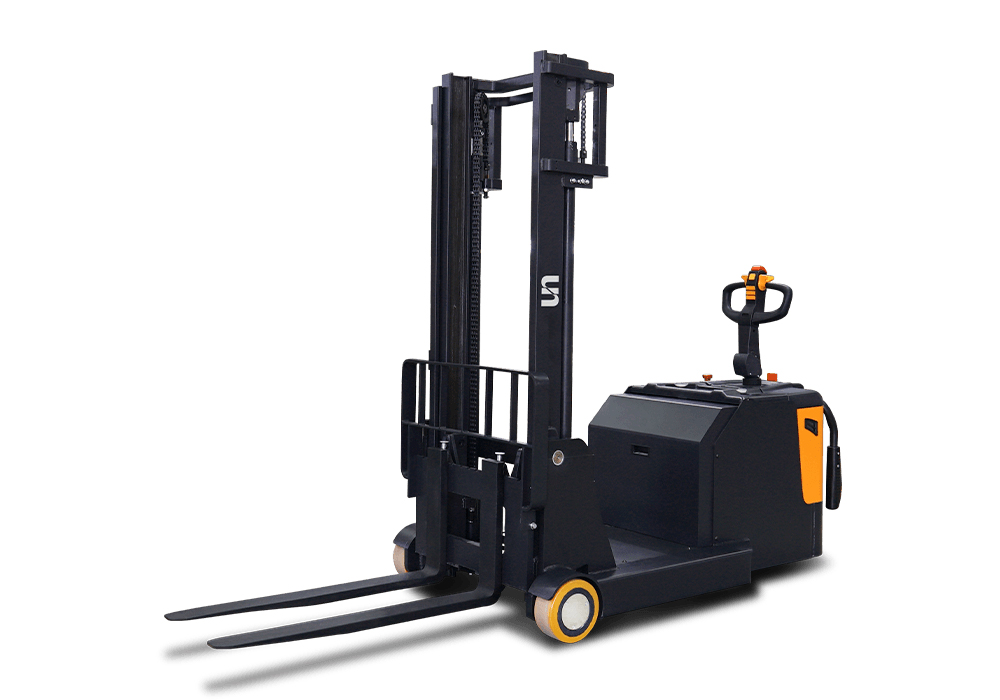

Electric Stacker PS12/15CB-C

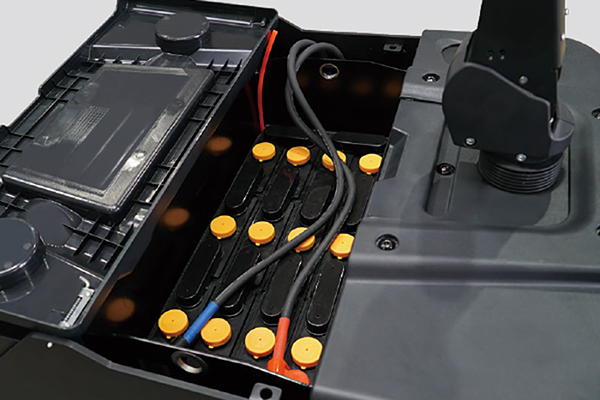

● Long operating time. PS12BCB-C comes with 24V/210Ah battery and PS15CB-C with 24V270Ah battery(optional 350Ah).

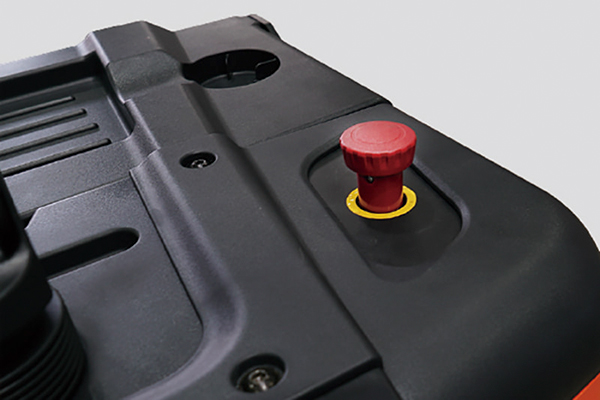

Emergency switch

● Emergency switch ensures the safety of driving.

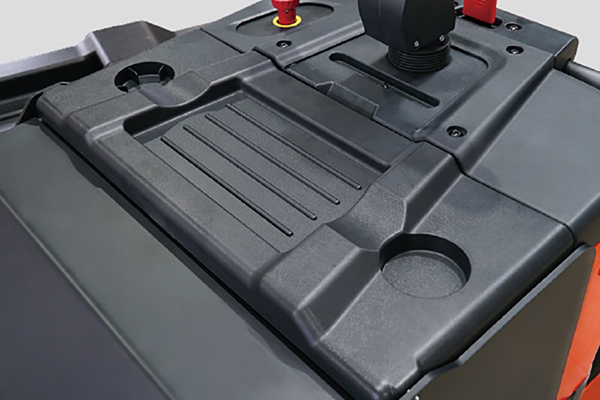

Strong tray

● The robust battery cover comes with a storage area for tools and stretch film used for packaging.

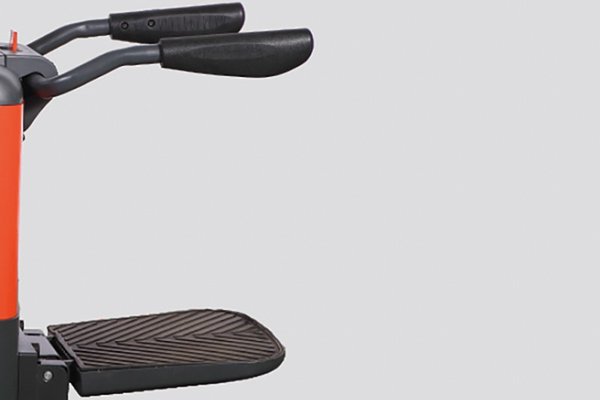

Foldable platform

● Optional suspension foldable platform with sideways protective arms, makes operations faster and safer.

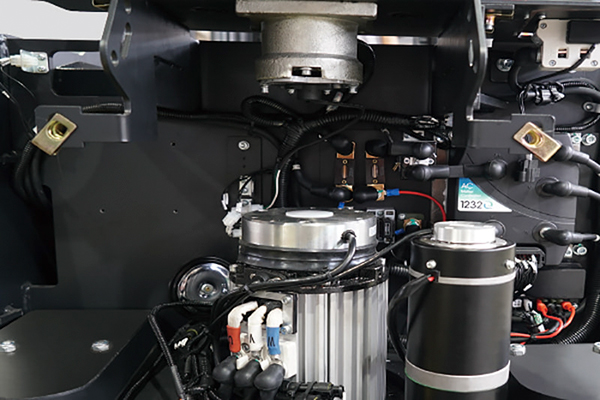

Powerful AC vertical drive system

● AC vertical drive system increases performance, reduces maintenance cost and improves working efficiency.

Electric power steering

● Electric power steering makes the operating effortless. Maneuvering in narrow spaces becomes a lot easier with electric power steering.

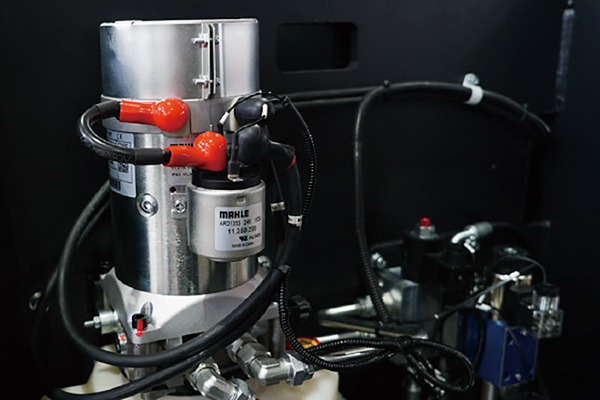

High performance pump

● The high performance pump ensures the accurate positioning of the fork during the lifting and lowering process, which makes the acceleration/deceleration more stable and safer.

Characteristics

1.2

Manufacturer's type designation

PS12CB-C

PS15CB-C

1.3

Power (electric, diesel, gasoline, LPG, electrical)

Electric

1.4

Driving method (manual, pedestrian, standing, driving, picking)

Pedestrian/Standing

1.5

Load Capacity

Q(t)

1.2

1.5

1.6

Load Center Distance

c(mm)

500

1.8

Front overhang

x(mm)

135

1.9

Wheelbase

y(mm)

1410

1550

 Wight

2.1

Dead weight (including battery)

kg

1850

130

2.2

Axle load at full load, drive side/load side

kg

400/2650

450/3180

2.3

Axle load at no load, drive side/load side

kg

900/950

1020/1110

3 . 1

Tires

Polyurethane wheel

3.2

Wheel size, drive side

∅xw(mm)

∅230x82

3.3

Wheel size, load bearing side

∅xw(mm)

∅230x100

3.4

Number of wheels (x= drive wheels) drive side / load-bearing side

1x/2

3.5

Wheelbase (front), drive side

b10(mm)

/

Dimensions

4.1

Mast/fork frame tilt angle, forward/backward tilt

α/β（°）

/

1.5/4

4.2

Lowered mast height

h1 (mm)

2400

2100

4.3

Free lift height

h2 (mm)

0

1500

4.4

Lift height

h3 (mm)

3600

4500

4.5

Extended mast height

h4 (mm)

4200

5395

4.9

Height of tiller in drive position min./max.

h14(mm)

923/1358

4.15

Lowered height

h13(mm)

40

4.19

Overall length

l1 (mm)

2790

2927

4.20

Length to face of forks

l2 (mm)

1840

1977

4.21

Overall width

b1 (mm)

1090

4.22

Fork dimensions

s/e/l(mm)

35/100/950

4.25

Distance between fork-arms

b5 (mm)

220-760

4.32

Ground clearance,center of wheelbase

m2 (mm)

52

4.33

Aisle width for pallets 1000* 1200(crossways)

Ast (mm)

2991

3125

4.34

Aisle width for pallets 800*1200(lengthways)

Ast (mm)

3076

3210

4.35

Service brake

Wa (mm)

1738

1872

Performance data

5.1

Travel speed,laden/unladen

km/h

5.5/6

5.2

Lift speed,laden/unladen

mm/s

95/135

100/200

5.3

Lowering speed,laden/unladen

mm/s

100/100

180/180

5.8

Max.gradeability, laden/ unladen

%

6/15

5.10

Service brake

%

Electromagnetic

Electri engine

6.1

Drive motor rating S2 60min

kW

1.6

6.2

Lift motor rating at S3 10%

kW

2.2

3.0

6.3

Battery acc.to Din 43531/35/36 A,B,C no

DIN

6.4

Battery voltage,nominal capacity K5

V/Ah

24/210

24 / 270

6.5

Battery weight +/-5%

kg

195

235

6.6

Energy consumption acc：:to VDI cycle

kWh/h

Additional Data

8.1

Type of drive control

AD

8.4

Sound level at driver's ear

dB(A)

68
