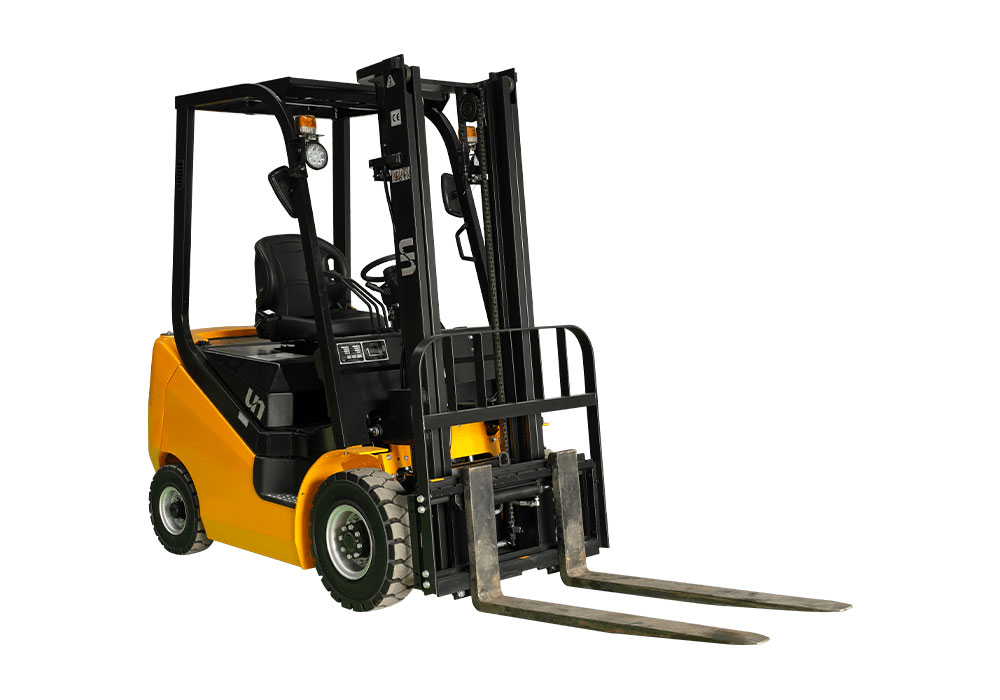

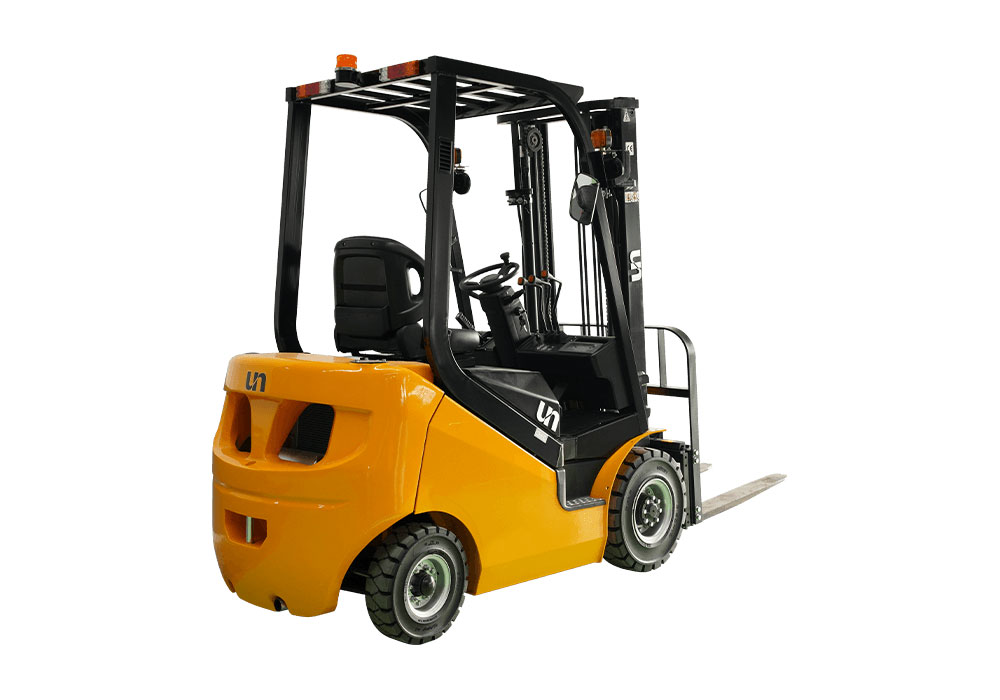

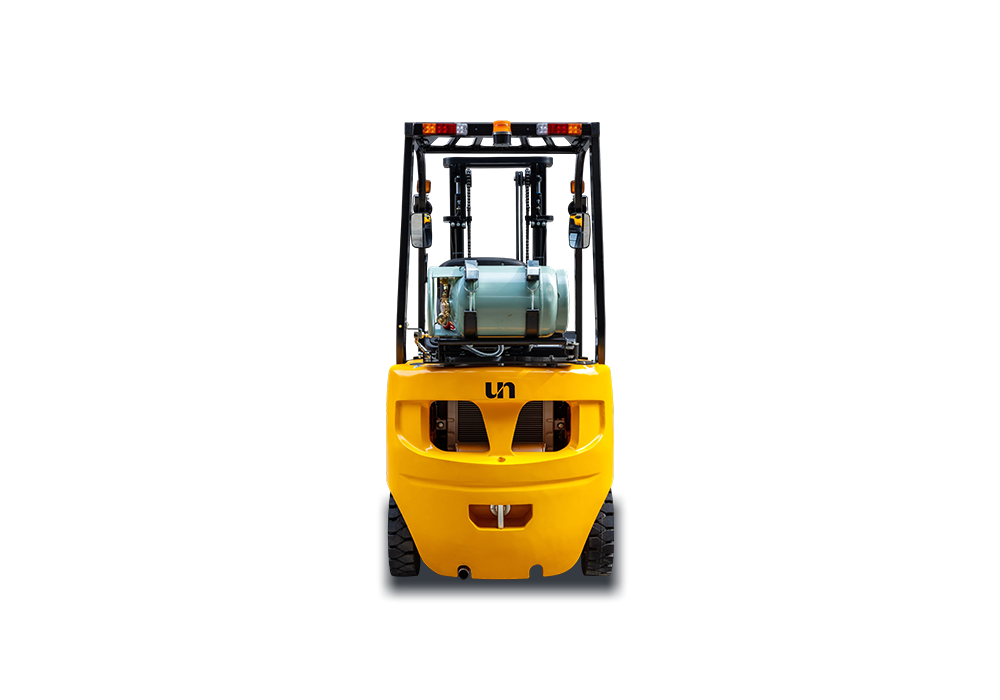

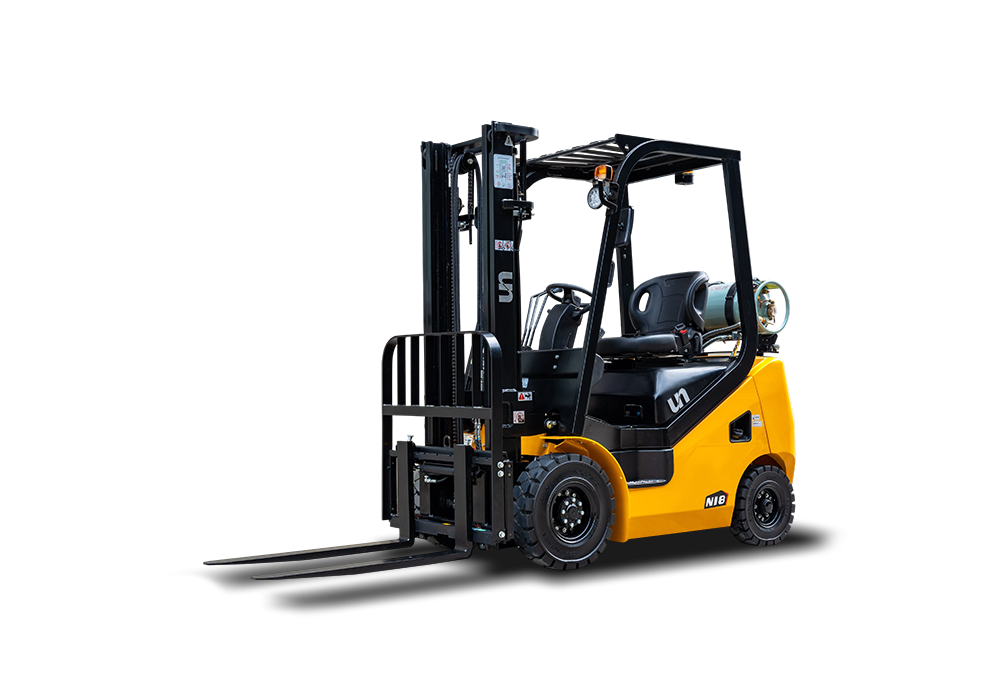

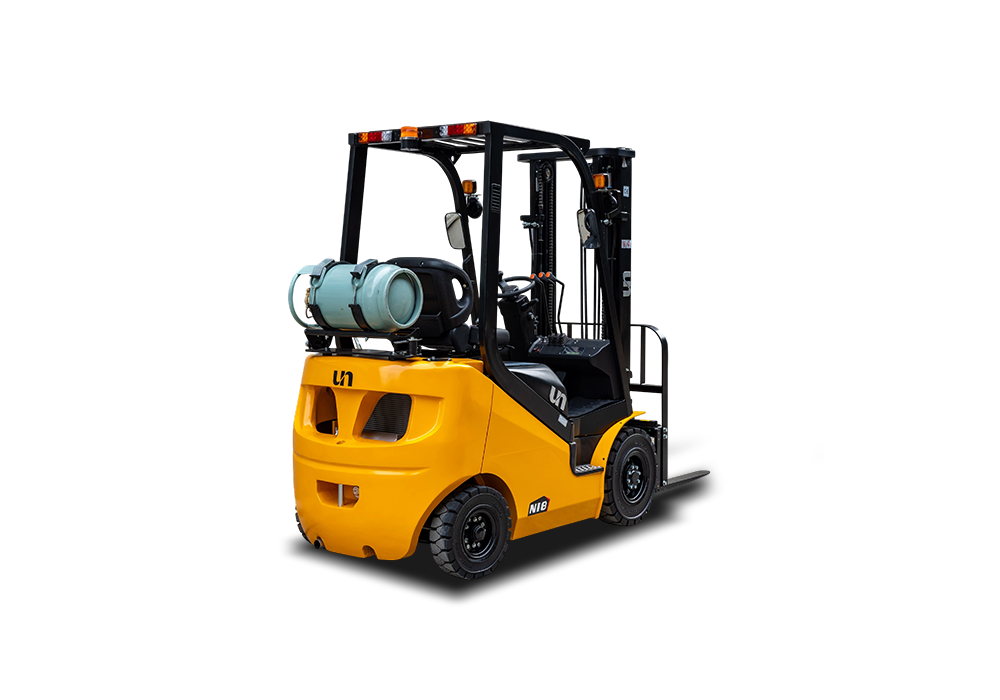

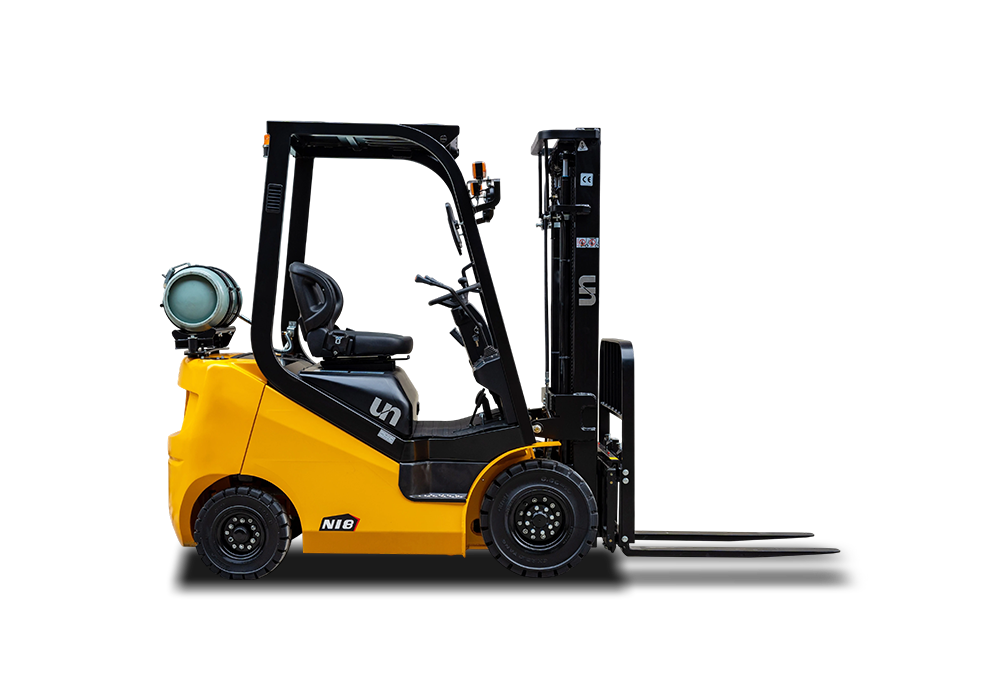

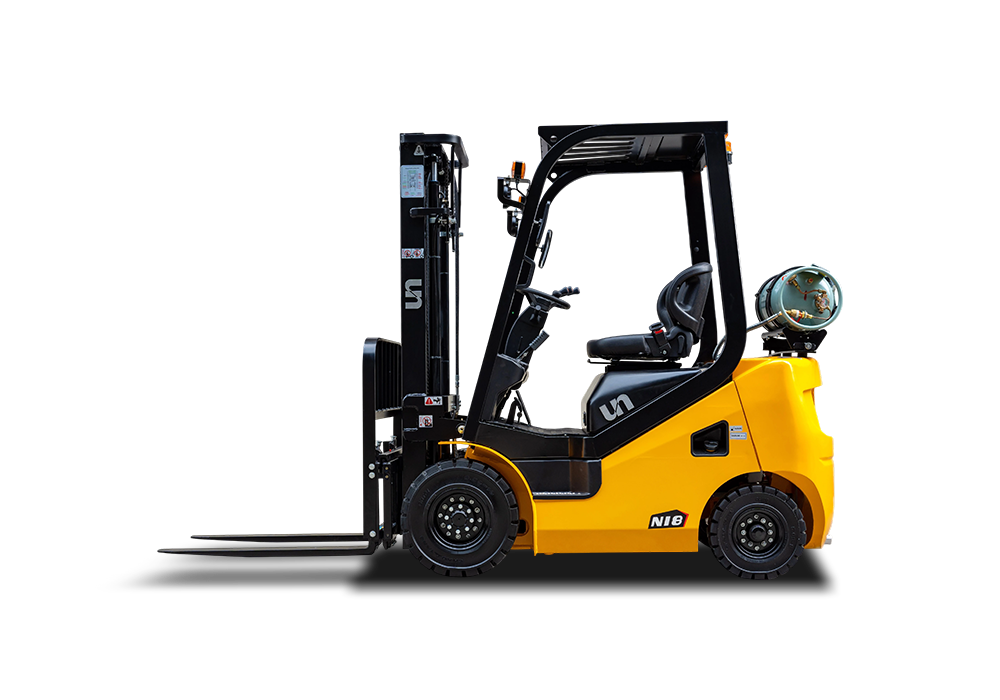

After many years’ improving and upgrading, UN 1.5T-mini 5.0T LPG/Gasoline forklift has become one of the best in China. It adopts leading design, manufacturing technology and reliable power train and hydraulic systems.
All models have been tested by the market that they can be trusted for all industries and get recognition from millions of clients across the worldwide.
 |
Reliability & Performance ● Scientific design and manufactured truck body combines superior power train makes the forklift outstanding in performance and operation. The power train includes the well-known engine GCT K21/25 and Japanese level technology transmission. IMPOCO convert system. ● Reliable hydraulic system adopts Japanese Shimadzu valve and pump or other brands with similar quality level, it ensure the high lifting and steering speed. ● Advanced Cooling technology matching with large capacity radiator makes sure the forklift can work well even in hot area. |
| Safety & Ergonomics ● OPS, Seat switch ensures a safe operation. ● Wide view mast can always give operator a good visibility. ● Strong OHG protects the operator from any falling objects. ● Suspension cabin with large foot space, adjustable steering wheel and comfortable seat. ● Power train suspension is available as option. |
 |
 |

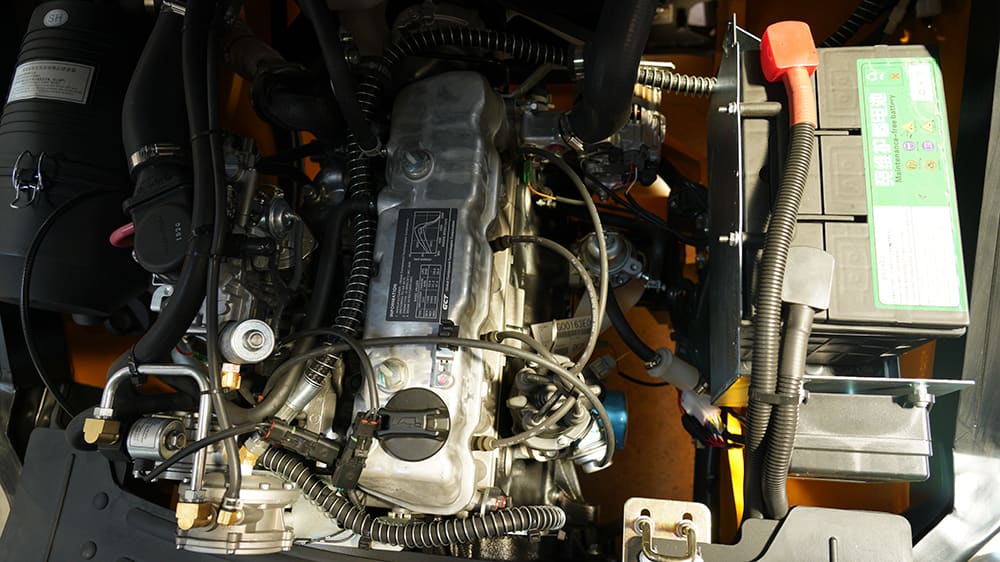

Easy Maintenance ● Nearly 90 degrees engine hood makes daily maintenance much easier, all part can be reached quickly. ● Convenient replace of transmission oil filter. |
| General |
1 |
Manufacturer |
|
UN |
|||||
|
2 |
Model |
|
FG15T FGL15T |
FG18T FGL18T |
FG20T FGL20T |
FG25T FGL25T |
FG30T FGL30T |
FG35T FGL35T |
|
|
3 |
Power Type |
|
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
|
|
4 |
Rated Load Capacity |
Q(kg) |
1500 |
1800 |
2000 |
2500 |
3000 |
3500 |
|
|
5 |
Load Centre |
C(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
|
| Characteristic & Dimension |
6 |
Rated Lift Height |
H3(mm) |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
7 |
Free Lift Height |
H2(mm) |
100 |
100 |
100 |
100 |
100 |
100 |
|
|
8 |
Fork Size (LxWxT) |
mm |
920x120x35 |
920x120x35 |
1070x120x40 |
1070x120x40 |
1070x125x45 |
1070x125x50 |
|
|
9 |
Mast Tilt Angle (F/R, a°/β°) |
deg |
6°/12° |
6°/12° |
6°/12° |
6°/12° |
6°/12° |
6°/12° |
|
|
10 |
Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
409 |
409 |
479 |
479 |
484 |
484 |
|
|
11 |
Rear Overhang |
X2(mm) |
470 |
470 |
520 |
520 |
595 |
635 |
|
|
12 |
Ground Clearance (Bottom of Mast) |
H7(mm) |
110 |
110 |
130 |
130 |
145 |
145 |
|
|
13 |
Length to Face of Fork (Without Fork) |
L1(mm) |
2285 |
2285 |
2660 |
2660 |
2700 |
2775 |
|
|
14 |
Overall Width |
B1(mm) |
1082 |
1082 |
1150 |
1150 |
1225 |
1225 |
|
|
15 |
Mast Lowered Height |
H1(mm) |
2025 |
2025 |
2055 |
2055 |
2070 |
2070 |
|
|
16 |
Mast Extended Height (With Backrest) |
H4(mm) |
4055 |
4055 |
4070 |
4070 |
4070 |
4070 |
|
|
17 |
Overhead Guard Height |
H5(mm) |
2160 |
2160 |
2215 |
2215 |
2235 |
2235 |
|
|
18 |
Turning Radius (Outside) |
Wa(mm) |
2100 |
2100 |
2365 |
2365 |
2425 |
2500 |
|
|
19 |
Min.Aisle width for pallets |
mm |
3700 |
3700 |
4120 |
4120 |
4180 |
4255 |
|
| Performance |
20 |
Travel Speed (No Load) |
km/h |
14.5 |
14.5 |
19 |
19 |
19 |
19 |
|
21 |
Lifting Speed (Full Load) |
mm/sec |
560 |
560 |
510 |
510 |
430 |
400 |
|
|
22 |
Lowering Speed (Full Load) |
mm/sec |
450 |
450 |
450 |
450 |
450 |
450 |
|
|
23 |
Max.Drawbar Pull (Full Load/No Load) |
KN |
17(14.5) |
17(14.5) |
17(14.5) |
17(14.5) |
16(15.7) |
16(15.7) |
|
|
24 |
Max.Gradeability (Full Load) |
% |
20 |
20 |
20 |
20 |
20 |
20 |
|
| Tyre |
25 |
Tyre (Front x 2) |
mm |
6.50-10-10PR |
6.50-10-10PR |
7.00-12-12PR |
7.00-12-12PR |
28x9-15-12PR |
28x9-15-12PR |
|
26 |
Tyre (Rear x 2) |
mm |
5.00-8-10PR |
5.00-8-10PR |
6.00-9-10PR |
6.00-9-10PR |
6.50-10-10PR |
6.50-10-10PR |
|
| Weight |
27 |
Total Weight |
kg |
2860 |
2990 |
3385 |
3605 |
4460 |
4775 |
|
28 |
Front Axle Weight Distribution (Full Load) |
kg |
3815 |
4120 |
4846 |
5494 |
6714 |
6997 |
|
|
29 |
Rear Axle Weight Distribution (Full Load) |
kg |
545 |
720 |
538 |
610 |
746 |
777 |
|
|
30 |
Front Axle Weight Distribution (No Load) |
kg |
1200 |
1170 |
1354 |
1442 |
1784 |
1910 |
|
|
31 |
Rear Axle Weight Distribution (No Load) |
kg |
1660 |
1820 |
2031 |
2163 |
2676 |
2865 |
|
| Power & Transmission |
32 |
Battery |
V/Ah |
12/90 |
12/90 |
12/90 |
12/90 |
12/90 |
12/90 |
|
33 |
Fuel Tank Capacity |
L |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
34 |
Operating Pressure (For Attachments) |
Mpa |
14.5 |
14.5 |
17.5 |
17.5 |
17.5 |
17.5 |
|
Specifications and characteristics are subject to change without notice.
Please contact us for detailed information.
